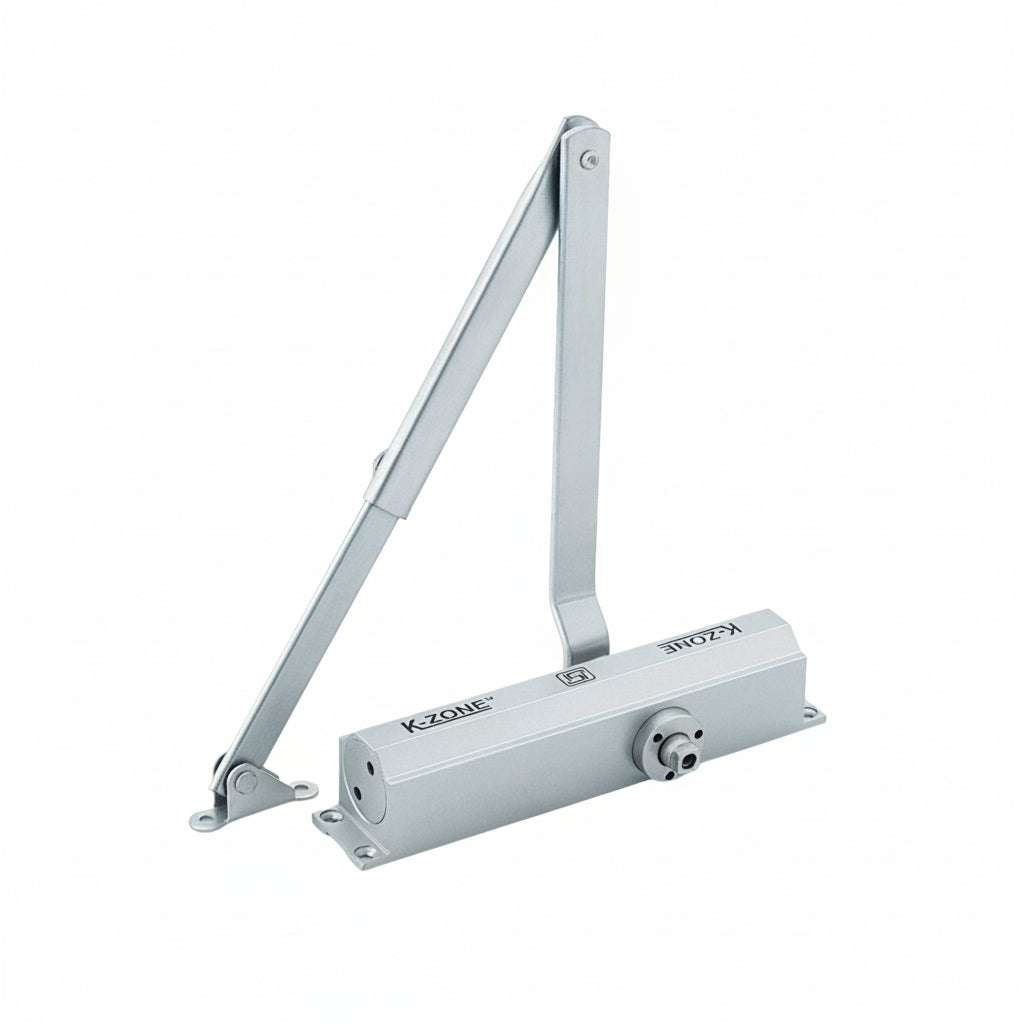

Kzone Open Door Closer 65 to 80kg Capacity (KDC 01)
Kzone Open Door Closer 65 to 80kg Capacity (KDC 01)
(Incl. of all taxes)
+ GST
MRP
Quantity
Couldn't load pickup availability
Product Details
- Applicable for Wooden& Metal doors
- Door weight maximum : 80 kgs
- Door width maximum : 950 mm
- Marking 90° : Hold open
- Maximum angle of opening - 120°
- Minimum door thickness : 40 mm.
- Finish - Silver
Technical Specifications
Technical Specifications
- Brand : Kzone
- Product Type : Openable Door Closer
- Model Number : KDC 01
- Type : Rack & Pinion
- Hold Open : No
- Mounting Height: 58mm
- Durability : 2,00,000 Cycles Tested
- Unit of count : Piece
- Item Weight (~) : 1900 Grams
Installation & Fitment
Installation & Fitment
- Suitable for Right Handle & Left Hand Opening door.
- Door width Maximum 1100mm
- Suitable Door Weight 65 to 80 kg
- Adjustment latching speed and adjustable door closing speed
- Suitable for Main door, bedroom door, bathroom door, office door etc.
Material & Fitment
Material & Fitment
- Aluminium
- Silver Colour Coating
Warranty & Support
Warranty & Support
2 Year Warranty against manufacturing defect. For warranty claim, contact GRIPDOOR Support: +91 9082199926
Inside the Box
Inside the Box
1 x Main closing body
1 x Connecting Arm
1 x Installation Screws & Hardware
1 x Installation Guide
A
Ashok Mewada I installed this on the main entrance of my cafe, which gets a ton of foot traffic. Our door is a heavy wood-and-glass combo, and most standard closers just couldn't handle the weight. The Kzone manages the 70kg door effortlessly. It doesn’t "fight" the customers when they pull it open, but it ensures the door shuts firmly every time, keeping the AC in and the street noise out.
