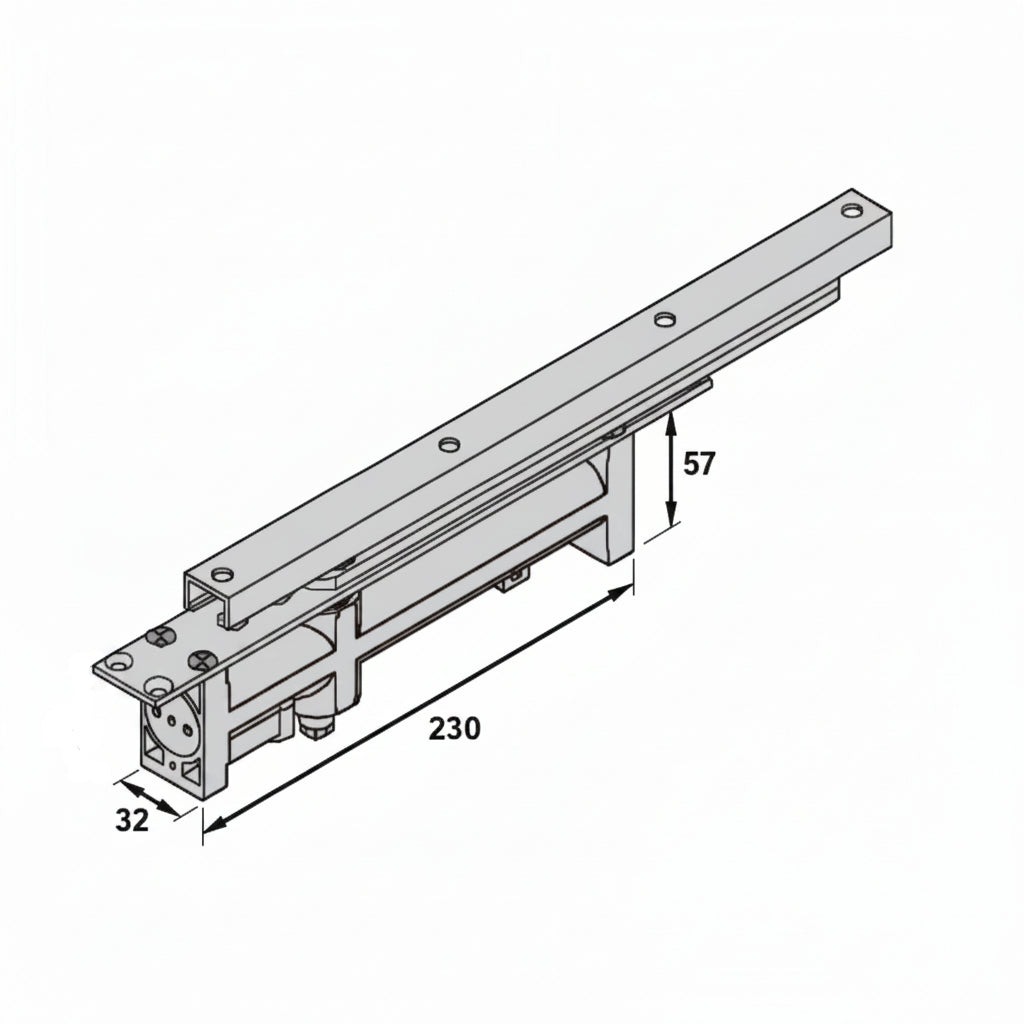

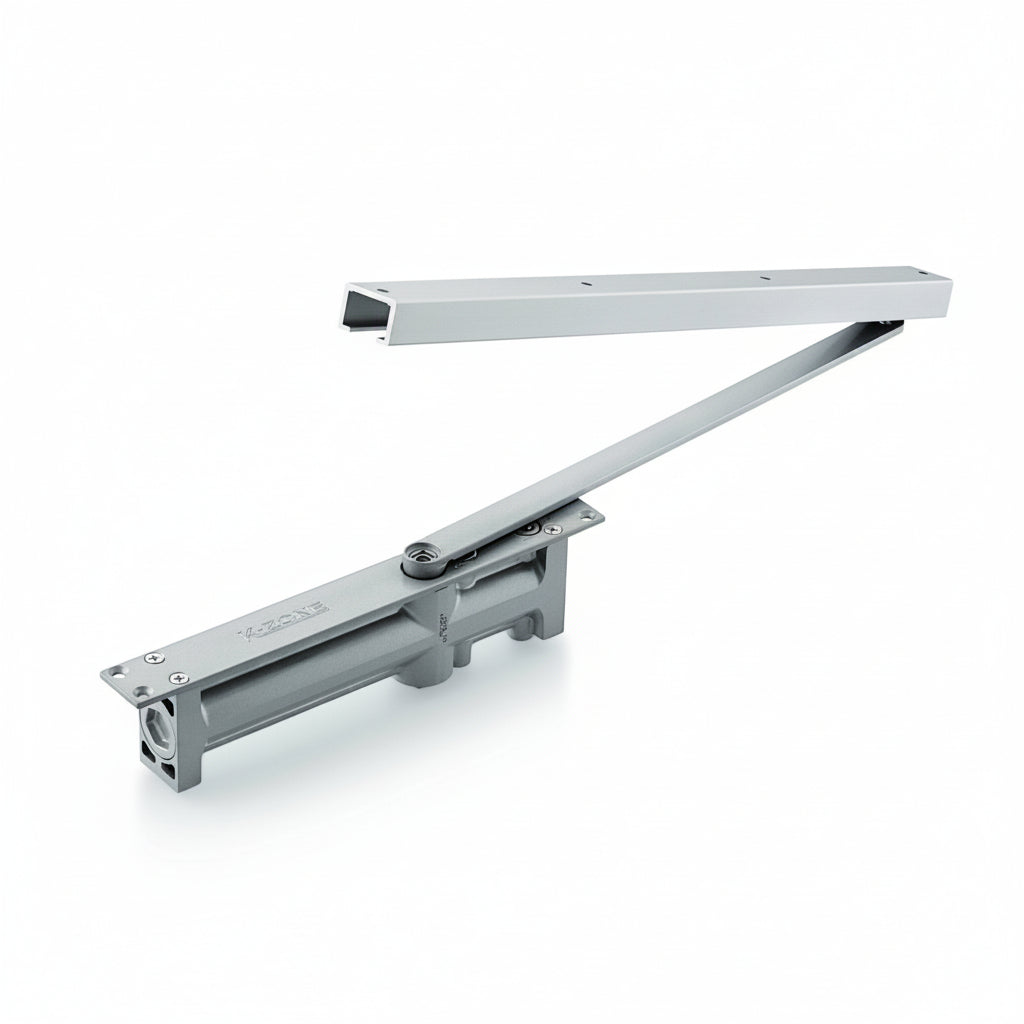

Kzone Concealed Door Closer 80kg Capacity (KDC 07)
Kzone Concealed Door Closer 80kg Capacity (KDC 07)
(Incl. of all taxes)
+ GST
MRP
Quantity
Couldn't load pickup availability
Product Details
- Applicable for Wooden & Metal doors
- Durability 100,000 cycles
- Door weight maximum : 80 Kgs
- Door width maximum : 950 mm
- Marking 90° : Hold open
- Work temperature : 40° to 60°
- Maximum angle of opening : 120°
- Minimum door thickness - 40 mm.
- Finish - Silver
Technical Specifications
Technical Specifications
- Brand : Kzone
- Product Type : Concealed Door Closer
- Model Number : KDC 07
- Power : EN 3-4
- Type : Rack & Pinion
- Hold Open : Yes
- Body Thickness : 32 mm
- Durability : 1,00,000 Cycles Tested
- Unit of count : Piece
- Item Weight (~) : 1900 Grams
Installation & Fitment
Installation & Fitment
- Minimum door thickness for installation is 40mm.
- Suitable for Right Handle & Left Hand Opening door.
- Door width Maximum 950mm
- Suitable Door Weight 80kg
- Adjustment latching speed and adjustable door closing speed
- Suitable for Main door, bedroom door, bathroom door, office door etc.
Material & Fitment
Material & Fitment
- Aluminium
- Silver Colour Coating
Warranty & Support
Warranty & Support
2 Year Warranty against manufacturing defect. For warranty claim, contact GRIPDOOR Support: +91 9082199926
Inside the Box
Inside the Box
1 x Main closing body
1 x Connecting Arm
1 x Mounting Plate
1 x Installation Screws & Hardware
1 x Installation Guide
