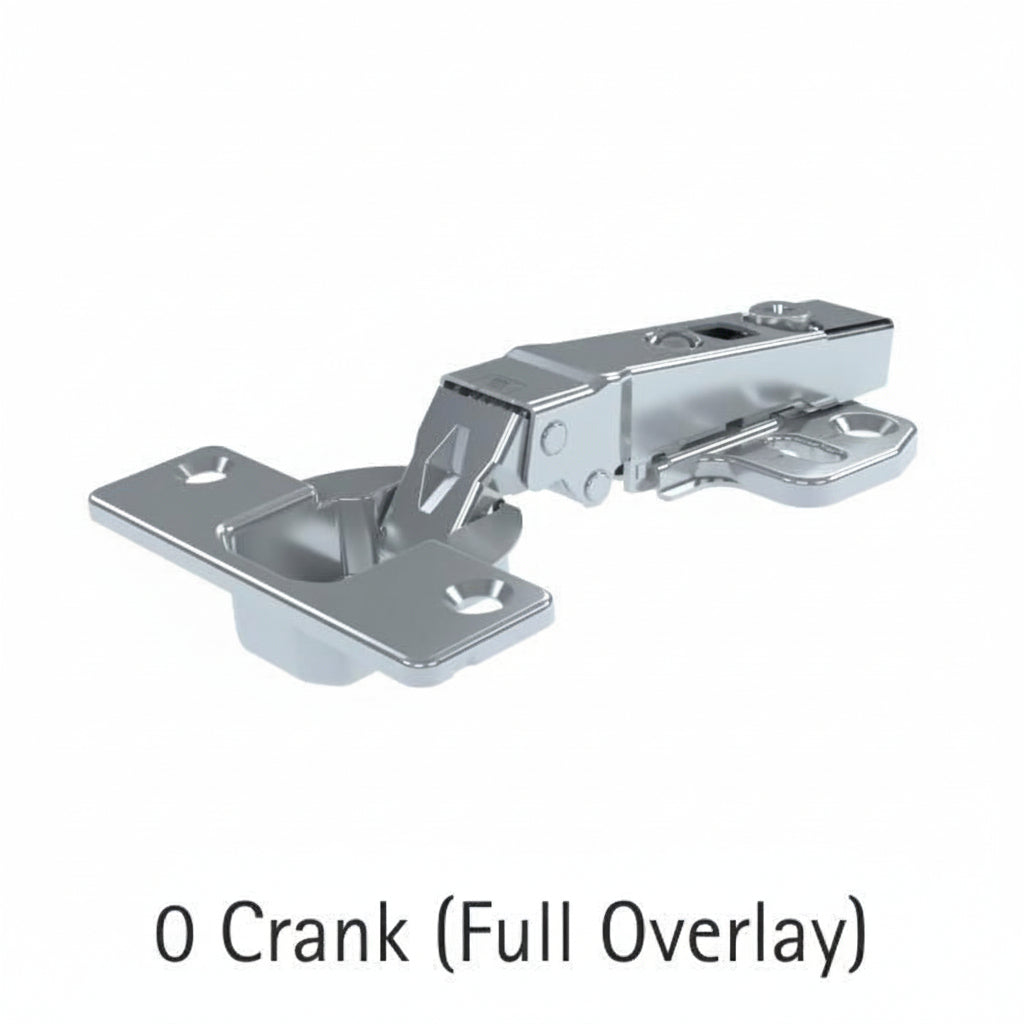

  • A professional-grade 0 crank full overlay concealed cabinet cup hinge made of durable nickel-plated steel. The image shows the straight-arm hinge assembly with adjustable screws and mounting plate, designed for seamless kitchen cabinet and wardrobe door installation where the door completely overlays the cabinet frame.

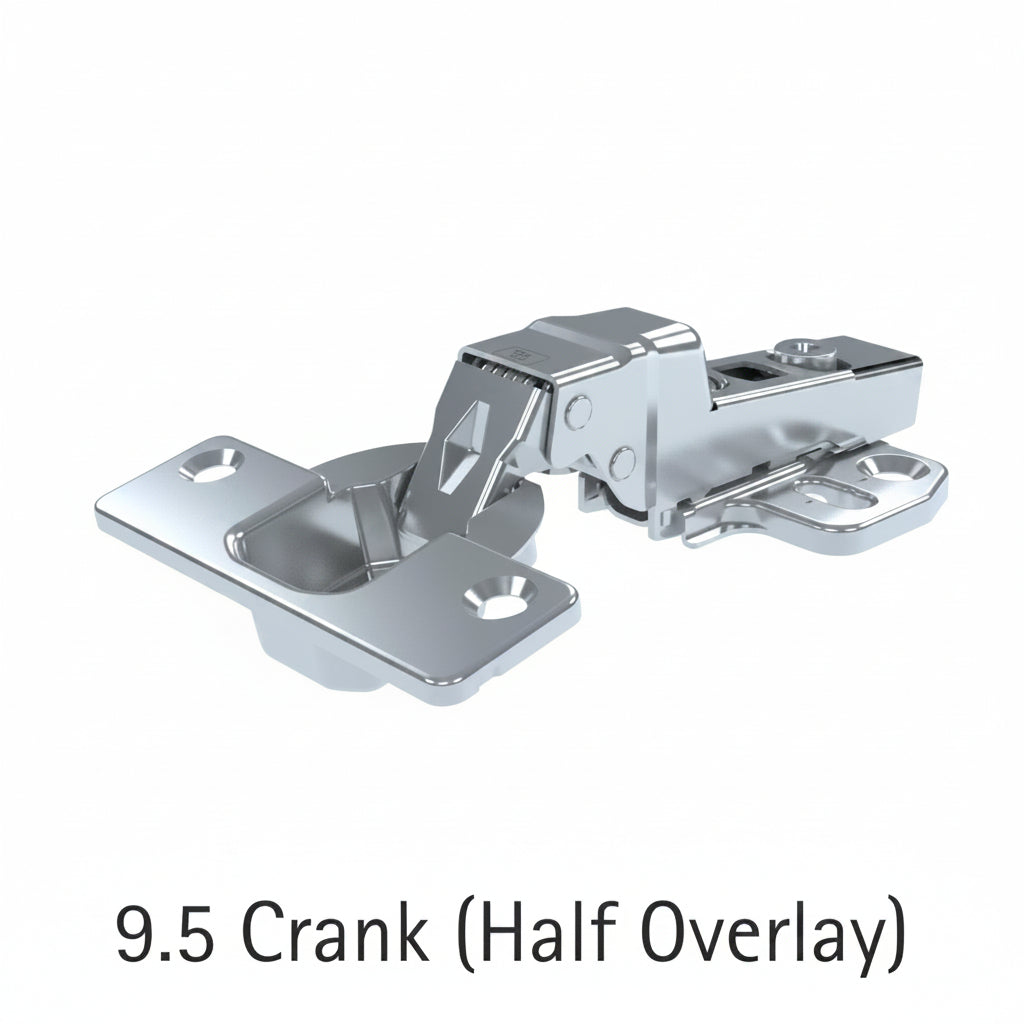

  • A professional-grade 9.5 crank half overlay concealed cabinet cup hinge made of durable nickel-plated steel. The image features a high-crank hinge arm and mounting plate with adjustment screws, designed for shared-partition cabinet door installations in kitchens and wardrobes.

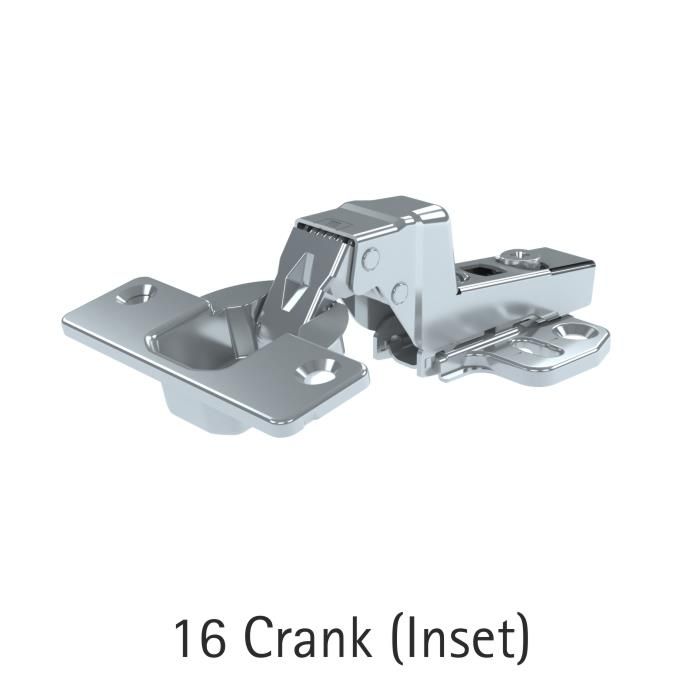

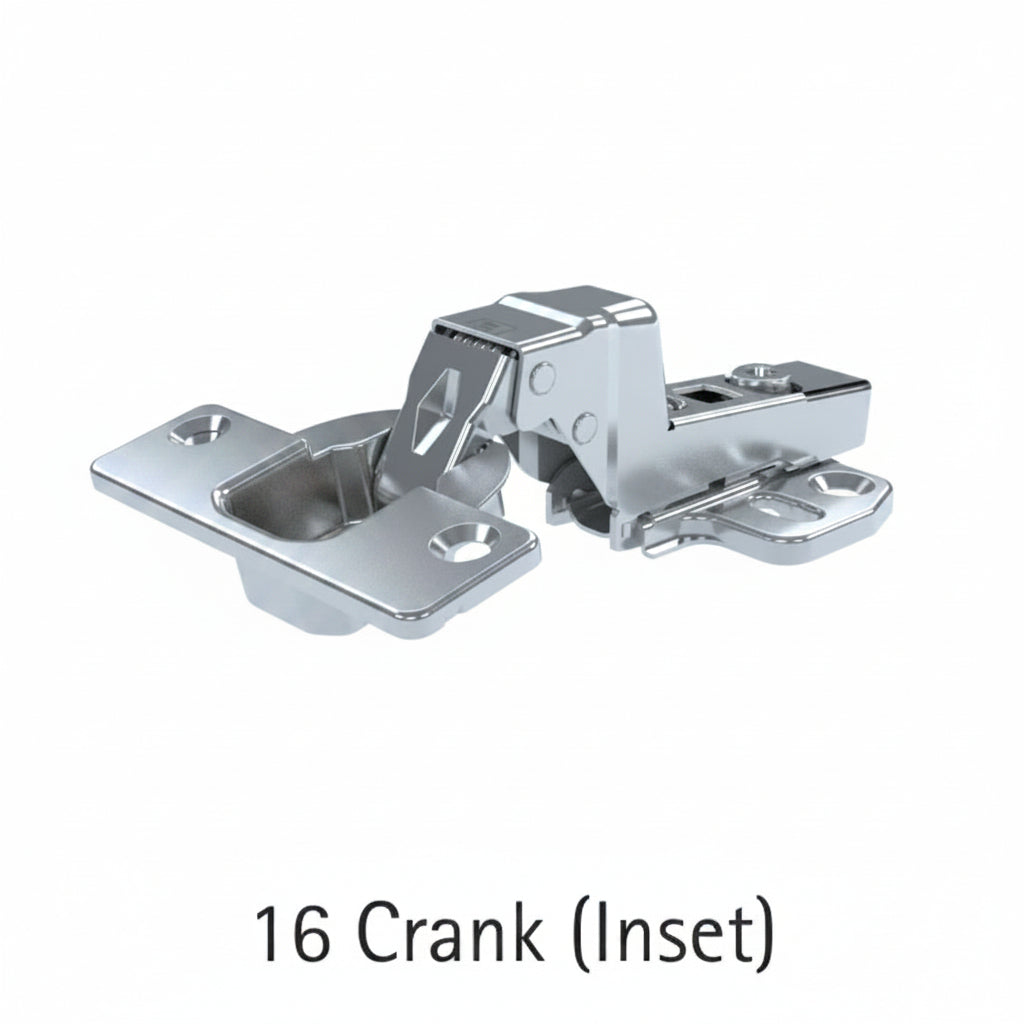

  • A professional-grade 16 crank inset concealed cabinet cup hinge made of durable nickel-plated steel. The image displays the high-crank hinge arm and adjustable mounting plate designed specifically for cabinet doors that sit flush within the cabinet frame.
1 3

Hettich Onsys Crank Hinges

Hettich Onsys Crank Hinges

Type

Product Details

The Hettich Onsys Crank Hinges are modern concealed cabinet hinges designed to provide smooth, silent, and reliable door operation in furniture applications. Equipped with an integrated soft-close (Silent System), they ensure gentle and noiseless closing, preventing slamming and enhancing user comfort.

These hinges feature a 105° opening angle for better accessibility, along with clip-on installation for quick and tool-free mounting. They come in different crank options (0, 9.5, 16) to suit full overlay, half overlay, and inset doors, offering flexibility in design.

Built from high-quality nickel-plated steel, the hinges provide durability, corrosion resistance, and long service life, with testing up to 40,000 cycles for reliable performance.

Overall, the Hettich Onsys Crank Hinges combine easy installation, adjustable alignment, and smooth soft-close functionality, making them ideal for kitchens, wardrobes, and modern furniture systems.

Product Details

Brand

Hettich

Product Type

 Crank Hinges

Finishing

SS Matt

Material

Stainless Steel

Size

0 Crank (Full Overlay), 9.5 Crank (Half Overlay),
16 Crank (Insert)

Specific Use

Crank Thick Hinge with Mounting Plate For Door.

Hole Count

3
