Home > Door Closers > Enox TS 880 Open Door Closer 80kg Capacity, max door width 1100 mm (EN 2 / 3 / 4)

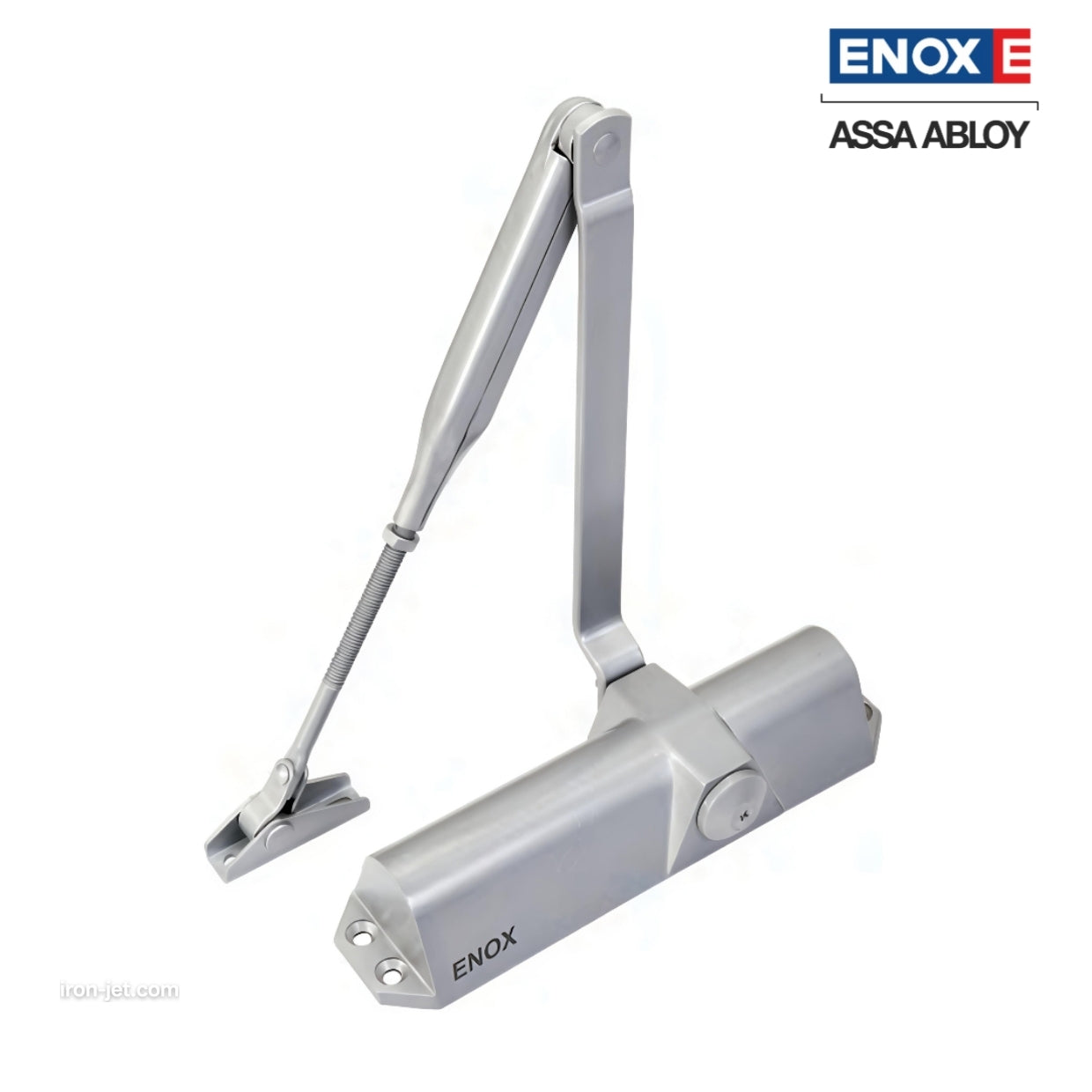

  • A surface-mounted ENOX (Assa Abloy) hydraulic door closer featuring a durable silver finish and a standard adjustable scissor arm. This commercial-grade door control hardware is designed for reliable self-closing performance on wooden or metal doors, offering adjustable closing and latching speeds to ensure safety and security in high-traffic office and residential environments.

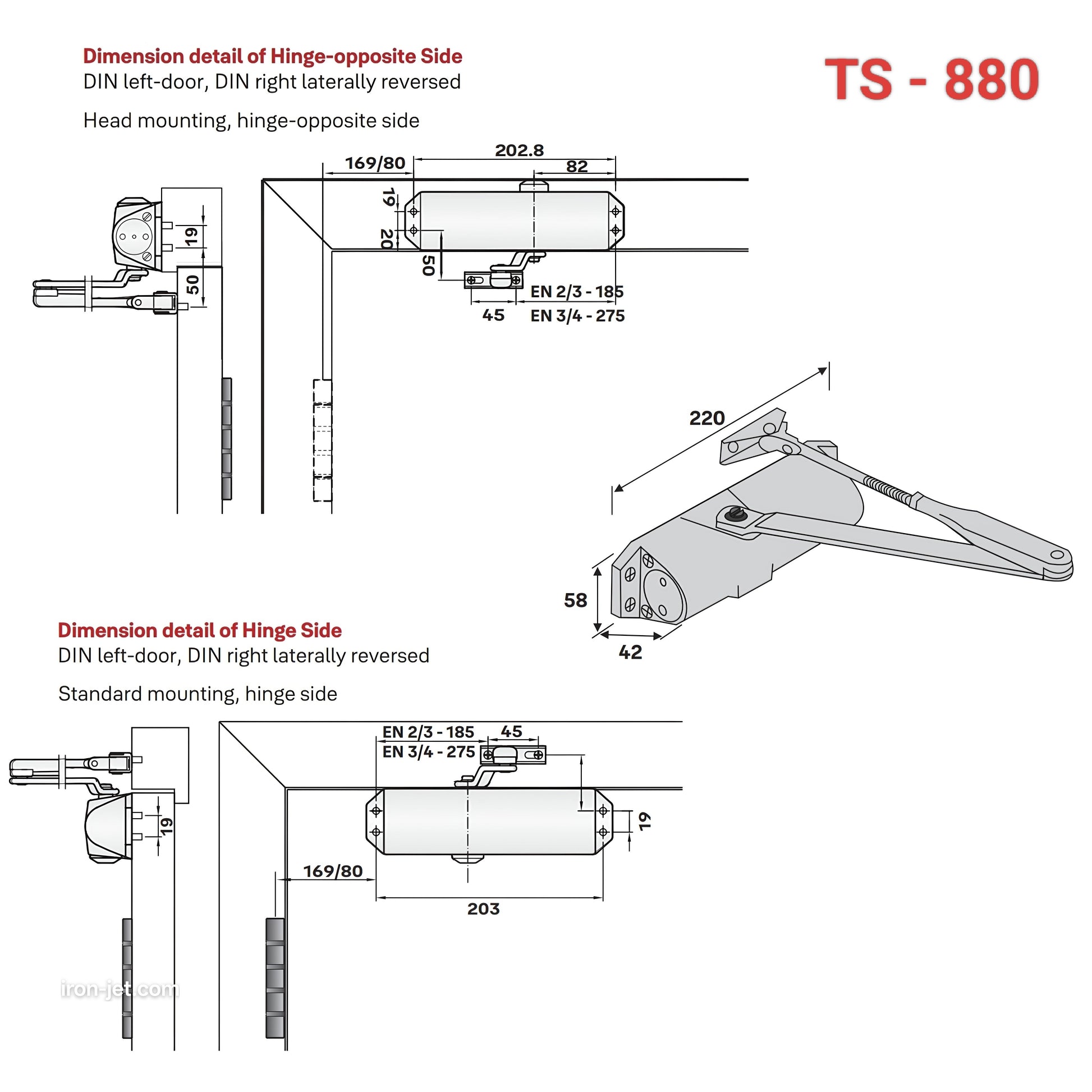

  • A comprehensive technical dimension diagram for the TS-880 surface-mounted hydraulic door closer. The schematic details installation specifications for both hinge-side and hinge-opposite side mounting, including unit measurements of 220mm length, 58mm height, and 42mm width. This architectural drawing provides precise mounting hole patterns and screw placements for EN 2/3 and EN 3/4 configurations, essential for professional installation on commercial and residential doors.
1 2

Enox TS 880 Open Door Closer 80kg Capacity, max door width 1100 mm (EN 2 / 3 / 4)

Enox TS 880 Open Door Closer 80kg Capacity, max door width 1100 mm (EN 2 / 3 / 4)

Color: Silver

Product Details

  • Applicable for Wooden& Metal doors
  •  Durability 100,000 Cycles Tested
  •  Door weight maximum : 80 kgs
  •  Door width maximum : 1100 mm
  •  Work temperature : 40° to 60°
  •  Maximum angle of opening 180°
  •  Finish - Silver

Technical Specifications

  • Brand : Enox
  • Product Type : Openable Door Closer
  • Model Number : TS 880
  • Power : EN 4
  • Type : Rack & Pinion
  • Hold Open : No
  • Mounting Height: 58mm
  • Durability : 5,00,000 Cycles Tested
  • Unit of count : Piece
  • Item Weight (~) : 1900 Grams

Installation & Fitment

  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 1100mm
  • Suitable Door Weight 80kg
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, bedroom door, bathroom door, office door etc.

Material & Fitment

  • Aluminium
  • Silver Colour Coating

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Main closing body

1 x Connecting Arm

1 x Installation Screws & Hardware

1 x Installation Guide

View full details
