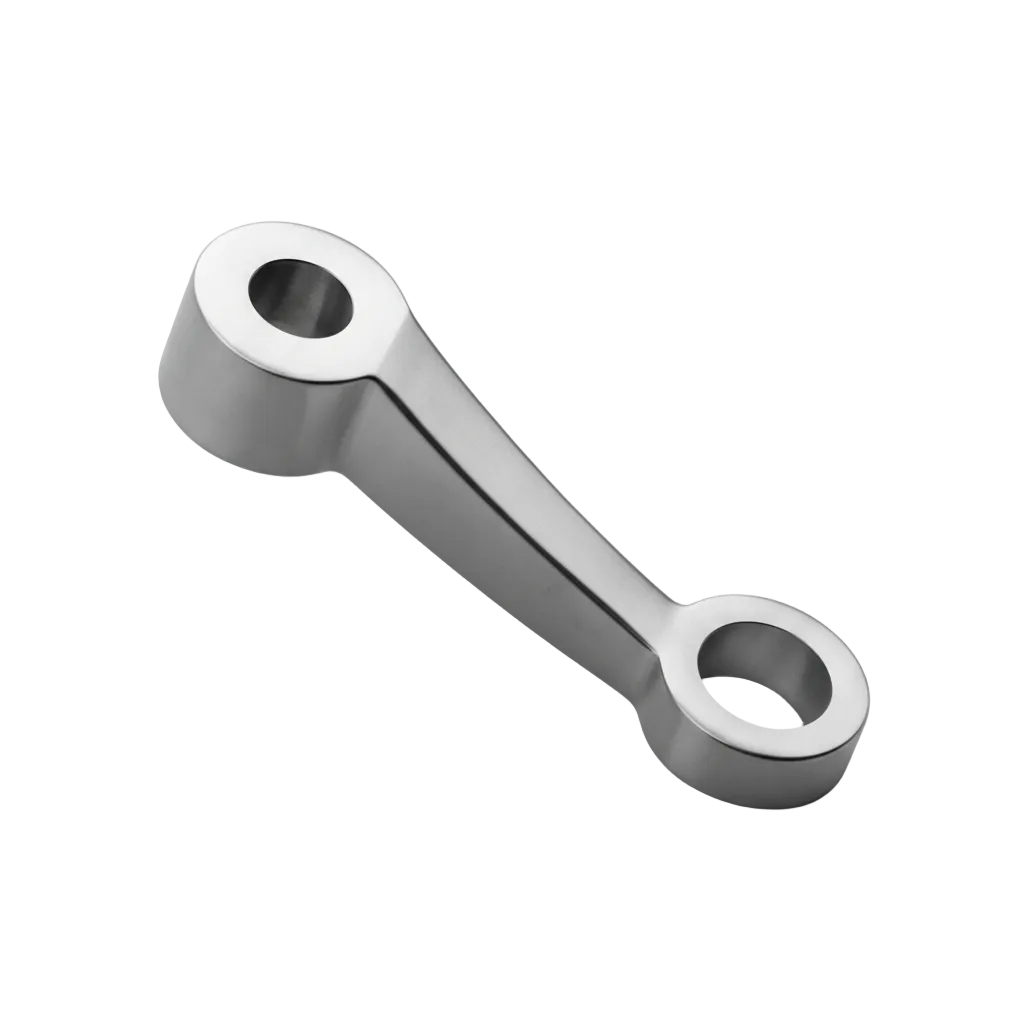

  • An ESPIDER025A single-arm glass spider fitting featuring a high-quality polished stainless steel finish. This heavy-duty architectural hardware is designed for point-fixed glass curtain walls and canopy installations, providing a minimalist and secure connection for large glass panels in modern commercial facades.

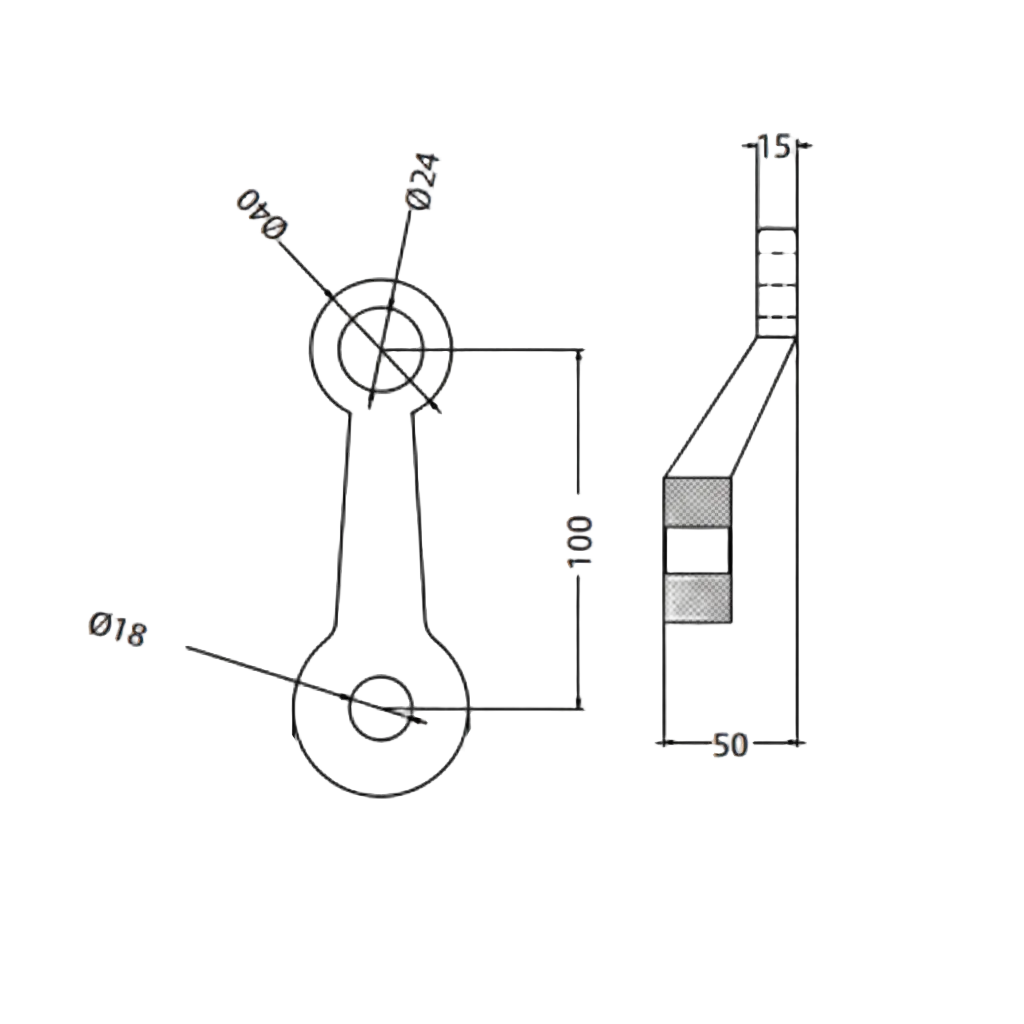

  • A technical dimension diagram for the ESPIDER 025 B single-arm glass spider fitting. The schematic provides essential architectural measurements, including a 100mm center-to-center distance, 50mm total depth, and hole diameters of 24mm and 18mm. This drawing is designed to assist architects and structural engineers in specifying point-fixed glass hardware for curtain walls and modern building facades.
1 2

Enox Spider Fitting 1 Way (Espider 025)

Enox Spider Fitting 1 Way (Espider 025)

Color: Silver

Product Details

1 Way Spider Fitting For Flush Glazing to Suit 1 Glass Panel Assembly & Installed At 180°

The Enox Spider 1 Way Fitting (Espider 025) for Flush Glazing (180°) is a high-performance glass hardware solution designed to support single glass panel assemblies in frameless flush glazing systems. Installed at a 180° configuration, it securely connects glass panels in a straight line while maintaining a sleek, open appearance. Built for strength and precision, it ensures excellent load distribution, structural stability, and a modern architectural finish, making it ideal for facades, curtain walls, and commercial glass installations.

Product Details

Brand

Enox

Product Type

 Enox Spider Fitting at (180°)

Unit

 Per Piece

Finishing

 Silver

Material

SS 316

Features

The Enox Spider 1 Way Fitting (Espider 025) is made from SS 316. Its 180° straight-line design allows precise alignment of glass panels in flush glazing systems. The fitting provides a secure grip with uniform load distribution, ensuring stability and safety. With a corrosion-resistant finish and precision-engineered components, it offers long-lasting performance and a sleek look for modern architectural glass facades.

Specific Use

 The Enox Spider 1 Way Fitting (Espider 025) is specifically used for connecting and supporting single glass panels in straight-line (180°) frameless glazing systems. It is widely applied in glass facades, curtain walls, showrooms, commercial buildings, and modern architectural structures where a seamless glass appearance is required. The fitting ensures secure fixing, even load distribution, structural stability, and a clean, transparent finish in flush glazing installations.
