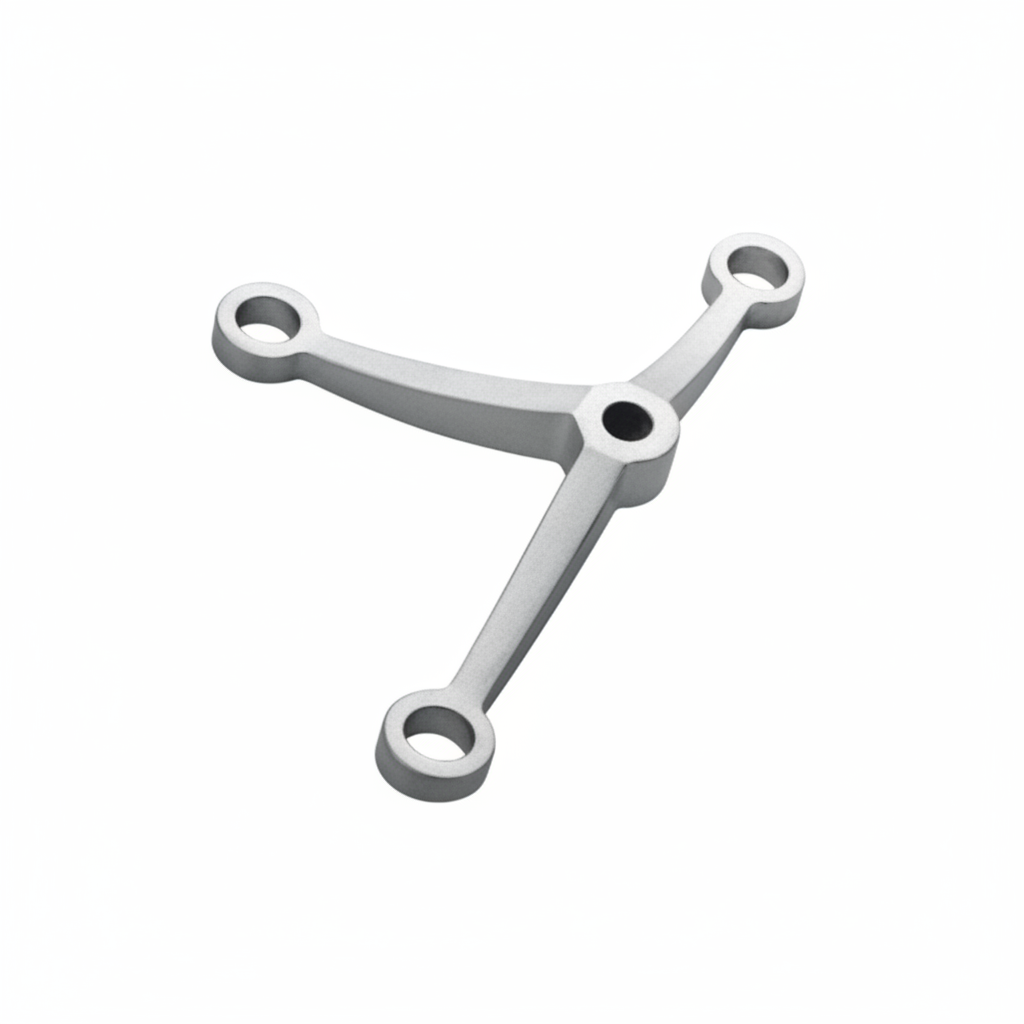

  • An ESPIDER022A three-arm glass spider fitting in a premium satin stainless steel finish. This architectural hardware is designed for point-fixed glass curtain walls, canopies, and partitions, providing a durable and minimalist solution for connecting multiple glass panels in modern commercial buildings.

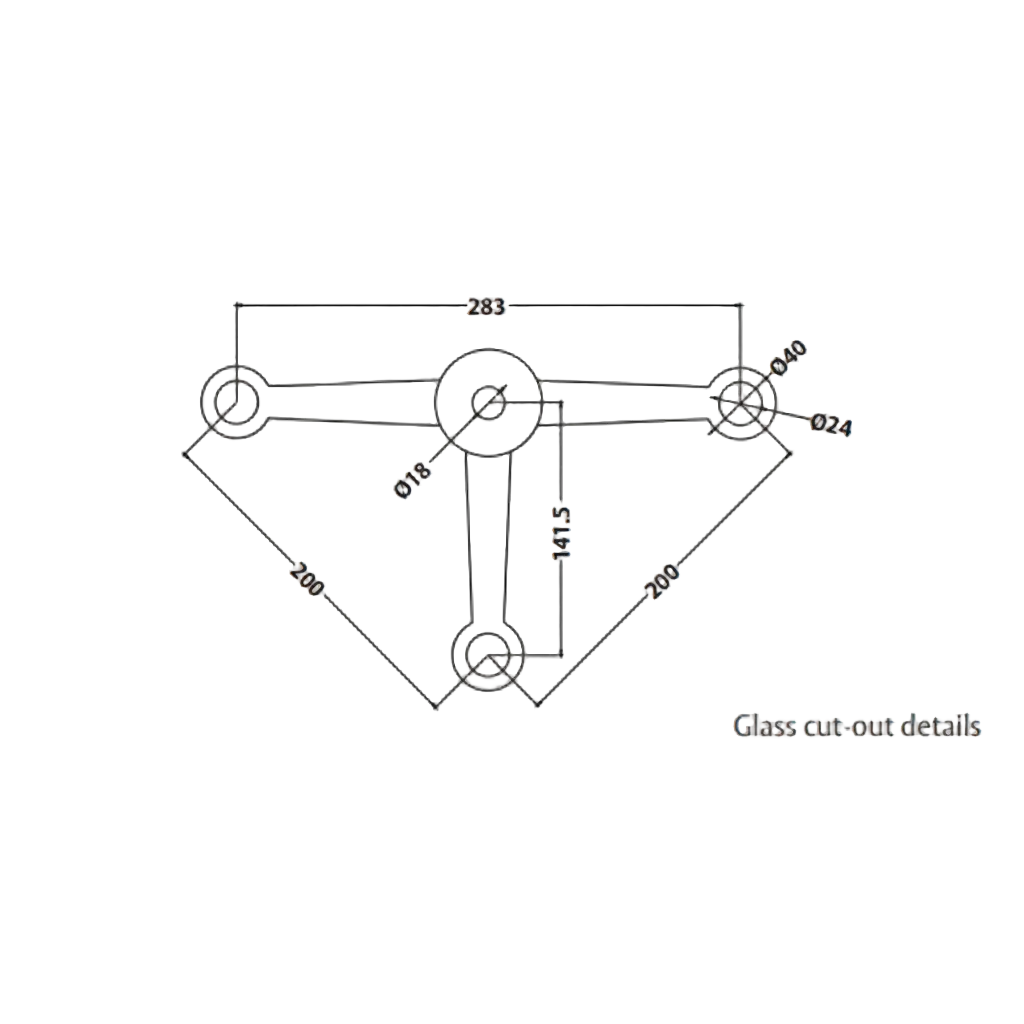

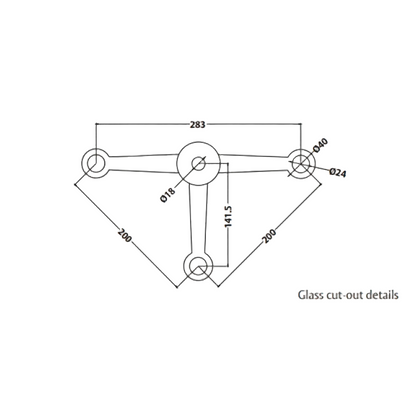

  • A technical dimension diagram for the ESPIDER 022 B three-arm glass spider fitting, detailing glass cut-out requirements. The schematic shows key architectural measurements, including a 283mm horizontal width, 141.5mm vertical height, and 200mm arm lengths. This drawing provides critical installation data such as hole diameters of 24mm and 18mm for precise point-fixed glass facade and curtain wall assembly.
1 2

Enox Spider Fitting (3 Way - Espider 022)

Enox Spider Fitting (3 Way - Espider 022)

Product Details

3 Way Spider Fitting For Flush Glazing To Suit 3 Glass Panel Assembly.

The Enox Spider Fitting (3 Way Spider Fitting Espider 022) for Flush Glazing is a premium glass hardware solution designed to support three glass panel assemblies in frameless glazing systems. It allows connection of panels at a three-way junction, ensuring strong structural integrity while maintaining a clean, open glass appearance. Built for precision and durability, it provides excellent load distribution, stability, and a modern architectural finish, making it ideal for glass facades, curtain walls, and commercial installations.

Product Details

Brand

Enox

Product Type

 (Spider Fitting 3 Way)

Unit

 Per Piece

Finishing

 Silver

Material

SS 316

Features

 The Enox Spider Fitting 3 Way Spider Fitting (Espider 022) for Flush Glazing is made frm SS 316. Its three-way design allows secure connection of three glass panels at a single junction with precise alignment. The fitting ensures even load distribution and strong grip, enhancing stability and safety. With a corrosion-resistant finish and precision-engineered arms, it offers long-lasting performance and a sleek look for modern glass facade systems.

Specific Use

The Enox Spider Fitting 3 Way Spider Fitting (Espider 022) for Flush Glazing is specifically used to connect and support three glass panels at a single junction in frameless glazing systems. It is commonly applied in glass facades, curtain walls, atriums, showrooms, and commercial buildings where multi-directional glass connections are required. The fitting ensures secure fixing, balanced load distribution, structural stability, and a seamless glass appearance in modern architectural installations.
