Home > Glass Hardware > Enox Spider Fitting 4 Way (Espider 021)

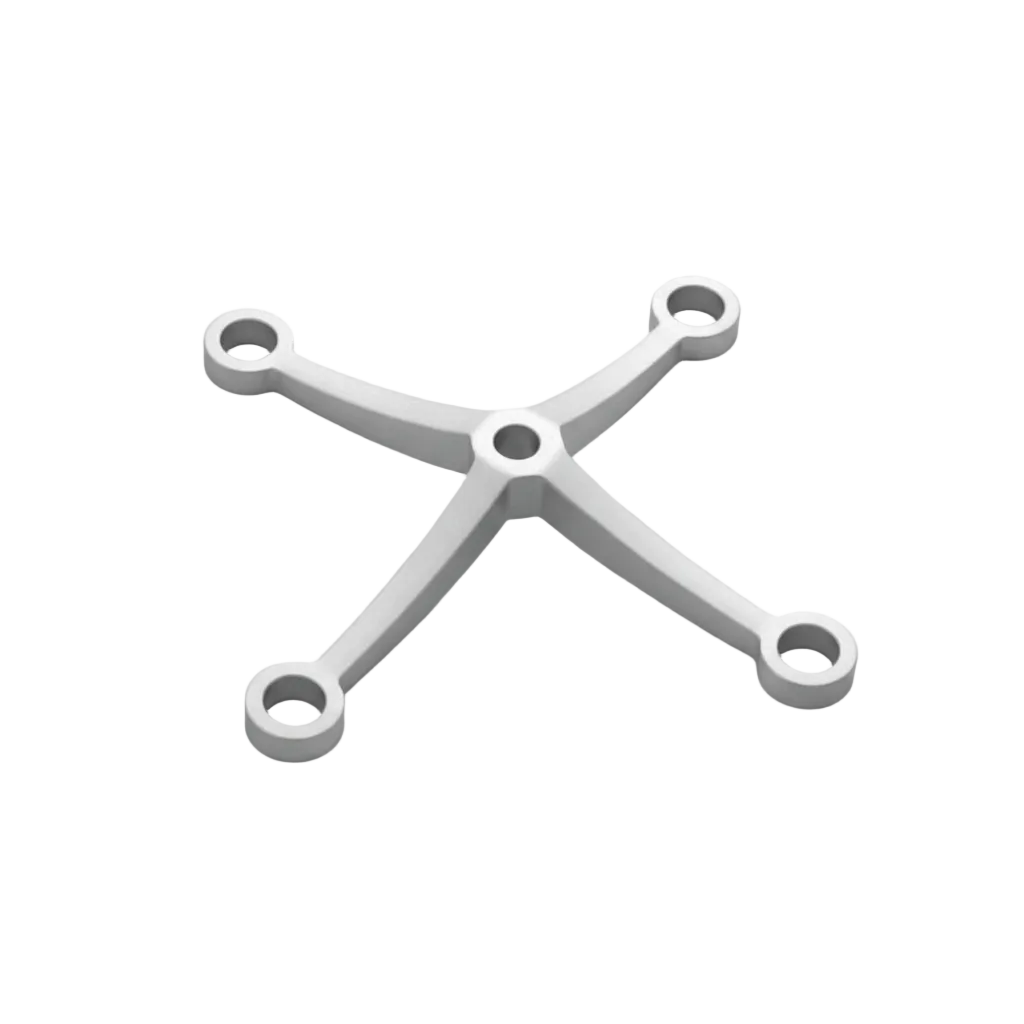

  • An ESPIDER021 four-arm glass spider fitting in a premium satin stainless steel finish. This heavy-duty architectural hardware is designed for point-fixed glass curtain walls, canopies, and large-scale structural facades, providing a minimalist and secure connection for four intersecting glass panels in modern commercial buildings.

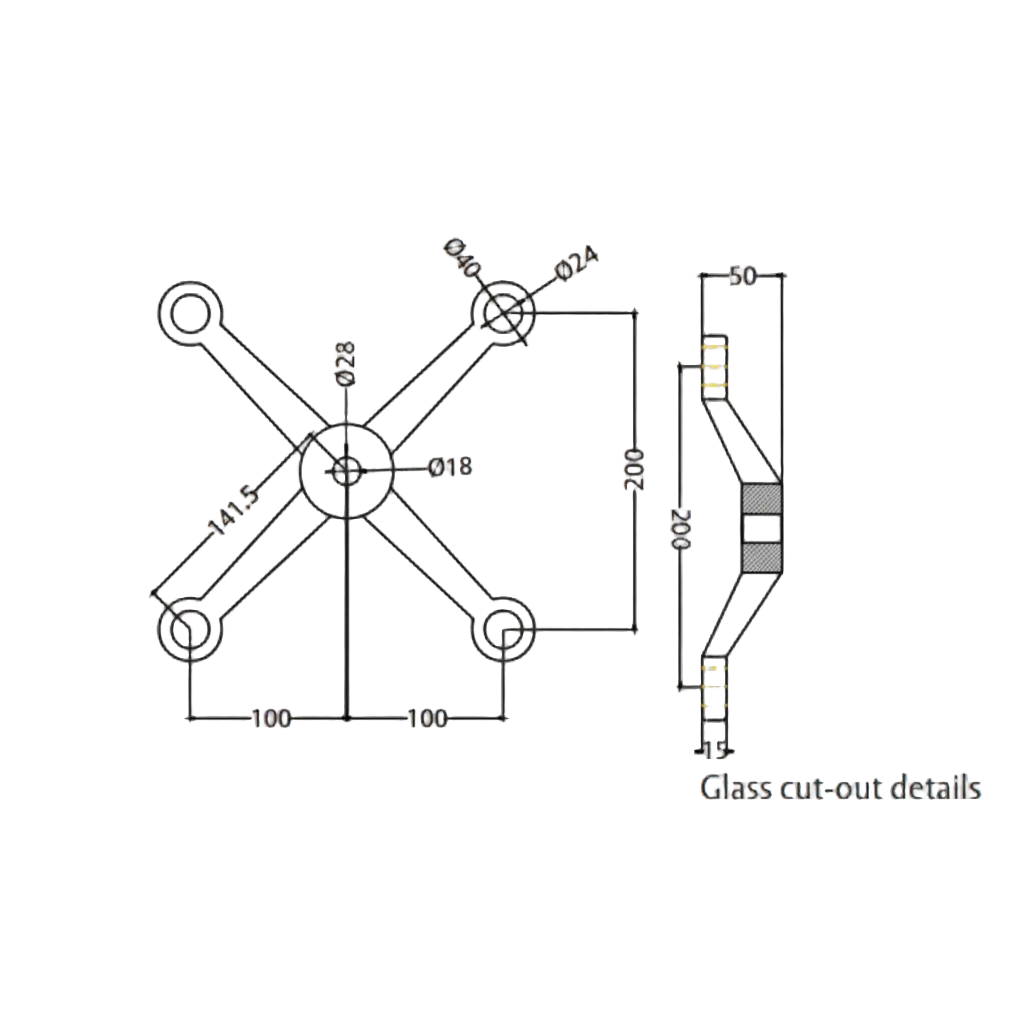

  • A technical dimension diagram for the ESPIDER 021B four-arm glass spider fitting, detailing architectural specifications for glass cut-outs. The schematic illustrates a 200mm vertical and horizontal span between mounting centers, a 50mm total depth, and a 141.5mm arm length from the center. This drawing provides critical installation data, including hole diameters of 24mm and 18mm, essential for specifying point-fixed glass hardware in large-scale structural facades and curtain walls.
1 2

Enox Spider Fitting 4 Way (Espider 021)

Enox Spider Fitting 4 Way (Espider 021)

Color: Silver

Product Details

4 Way Spider Fitting For Flush Glazing To Suit 2 or 4 Glass Assembly.

The Enox Spider Fitting 4 Way (Espider 021) is a high-performance glass hardware solution designed to support 2 or 4 glass panel assemblies at multi-directional junctions in frameless glazing systems. It provides strong structural stability while maintaining a sleek, open glass appearance. Engineered for durability and precision, it ensures secure fixing, even load distribution, and accurate alignment, making it ideal for glass facades, curtain walls, atriums, and modern architectural installations.

Product Details

Brand

Enox

Product Type

 4 Way Spider Fitting For Flush Glazing To Suit 2 or 4 Glass Assembly.

Unit

 Per Piece

Finishing

 Silver

Material

SS 316

Features

The Enox Spider Fitting 4 Way (Espider 021) for Flush Glazing is made from SS 316. Its four-way design allows secure connection of 2 or 4 glass panels at a single junction with precise alignment. The fitting ensures a firm grip and even load distribution, enhancing structural stability and safety. With a corrosion-resistant finish and precision-engineered arms, it offers long-lasting performance and a sleek look for modern frameless glazing systems.

Specific Use

 The Enox Spider Fitting 4 Way (Espider 021) for Flush Glazing is specifically used to connect and support 2 or 4 glass panels at a central junction in frameless glazing systems. It is commonly applied in glass facades, curtain walls, atriums, canopies, showrooms, and commercial buildings where multi-directional glass connections are required. The fitting ensures secure fixing, balanced load distribution, strong structural stability, and a seamless glass appearance in modern architectural installations.
View full details
