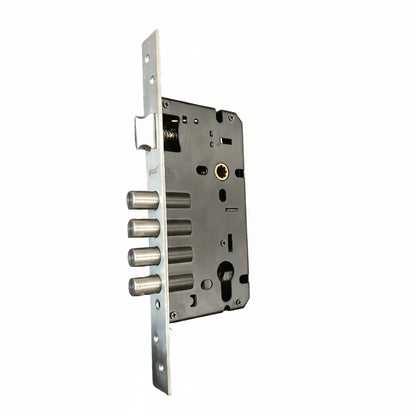

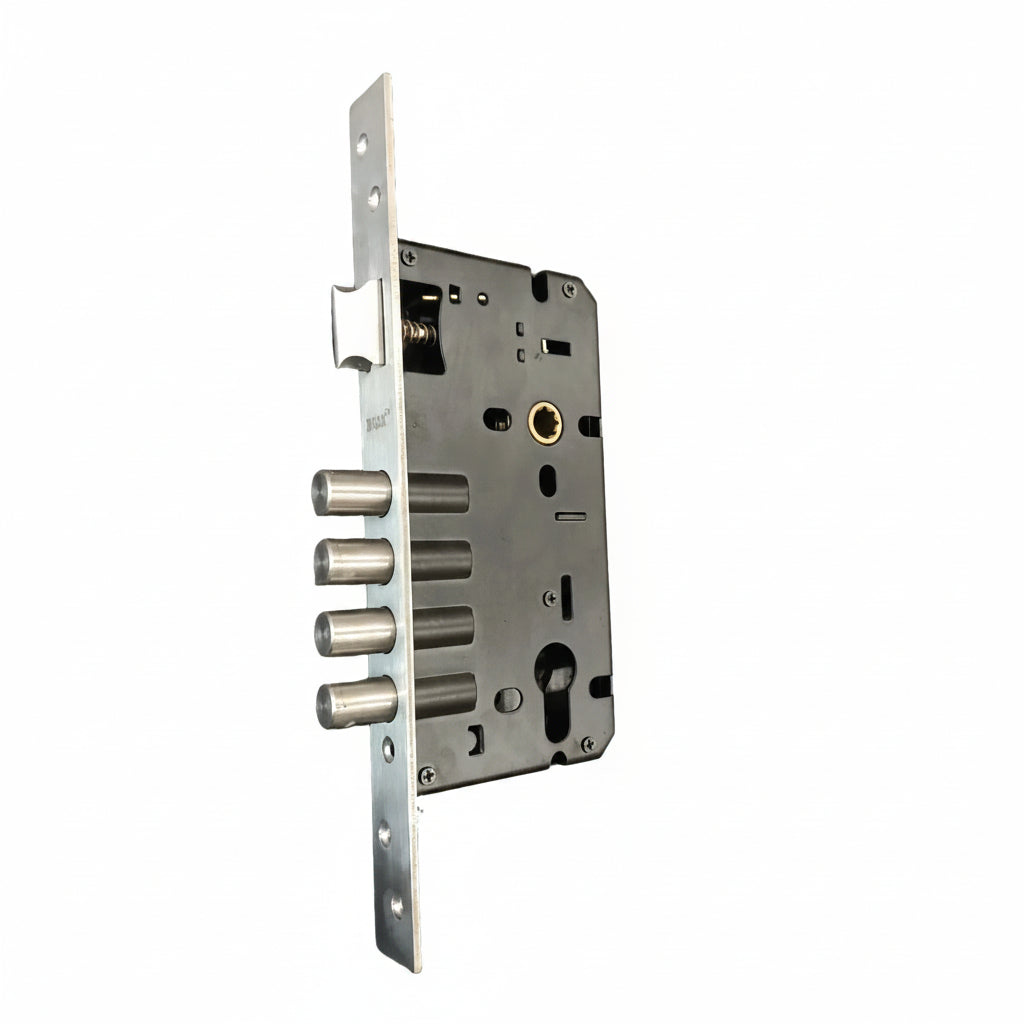

  • Enox multi-bolt mortise lock body in a brushed satin finish featuring a four-bullet stainless steel deadbolt, reversible latch for left or right-hand doors, and a high-security key cylinder for main entrance protection.

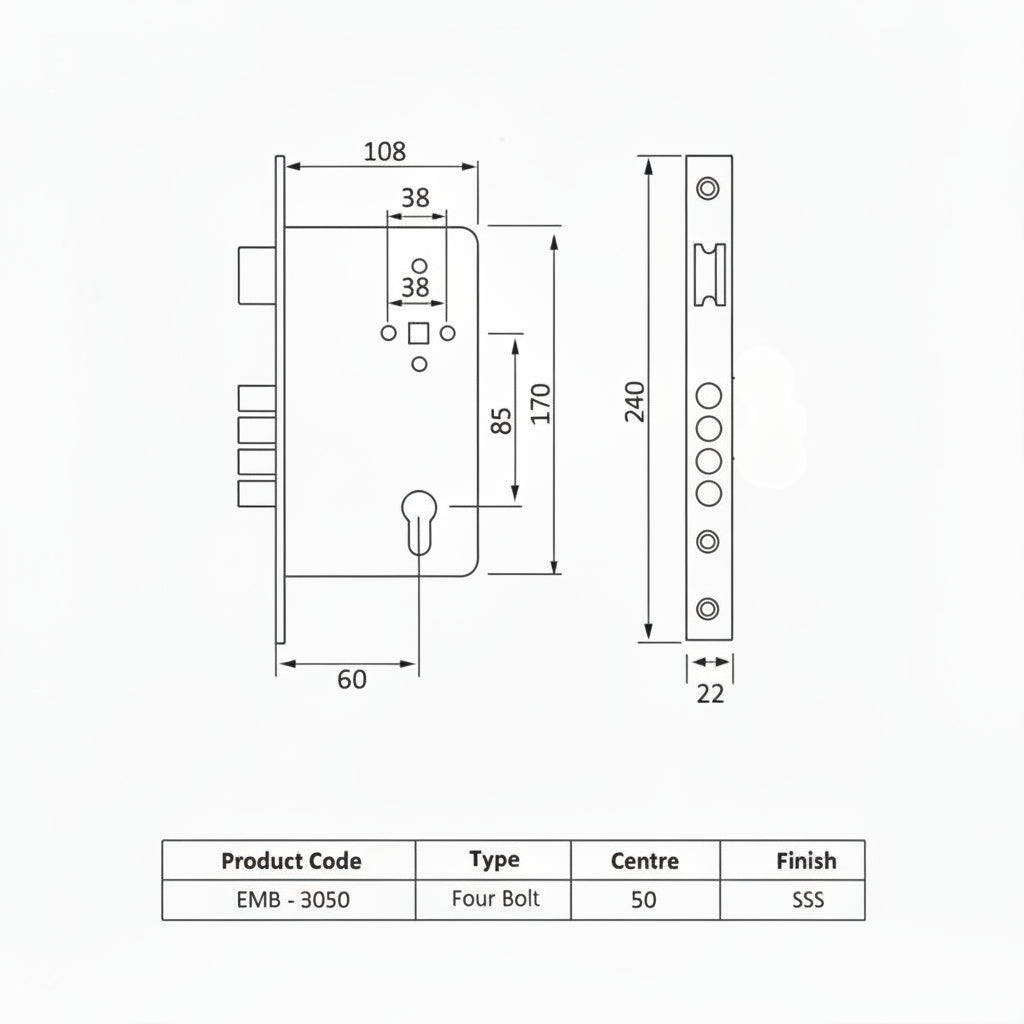

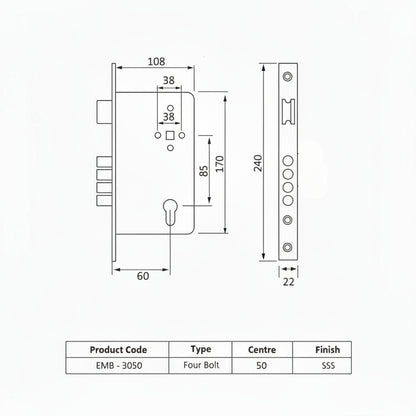

  • Technical dimensional diagram for Enox EMB 3050 four-bolt mortise lock body in Satin Stainless Steel (SSS) finish, showing an 85mm center-to-center distance, 50mm backset, and 240mm faceplate height.
1 2

Enox Mortise Lock Body 4 Rod 2 Strok(EMB 3050)

Enox Mortise Lock Body 4 Rod 2 Strok(EMB 3050)

Color: Satin

Product Details

The Enox Mortise Lock Body (EMB 3050) is a durable and high-performance locking mechanism designed for secure and smooth door operation. Made with a satin stainless steel (SSS) finish, it offers excellent strength, corrosion resistance, and long-lasting durability. Featuring a multi-bolt (four bolt) system, it provides enhanced security and firm locking, making it ideal for main doors and high-security applications. Suitable for door thickness ranging from 25mm to 50mm, it ensures reliable performance in both residential and commercial spaces.


Product Details

Brand

Enox

Product Type

 Mortise Lock (4 bolt 2 stroke)

Door Thickness

 25 mm to 50 mm

Unit

 Per Piece

Finishing

 Satin

Material

Brass. SS 304, Mild Steel

Features

The Enox Mortise Lock Body (EMB 3050) is made from Brass. SS 304, Mild Steel, It offers a smooth and silent locking mechanism for comfortable daily use, along with a precision-engineered bolt system for reliable and secure locking. The lock body is compatible with lever handles and key cylinders, supports doors with standard thickness (25–50 mm), and includes a corrosion-resistant finish for extended service life.

Specific Use

 The Enox Mortise Lock Body (EMB 3050) is made from  specifically used for securing main doors and high-traffic entry points in residential and commercial spaces. Its multi-bolt locking system makes it ideal for areas requiring enhanced security, ensuring strong locking, controlled access, and reliable everyday performance.
