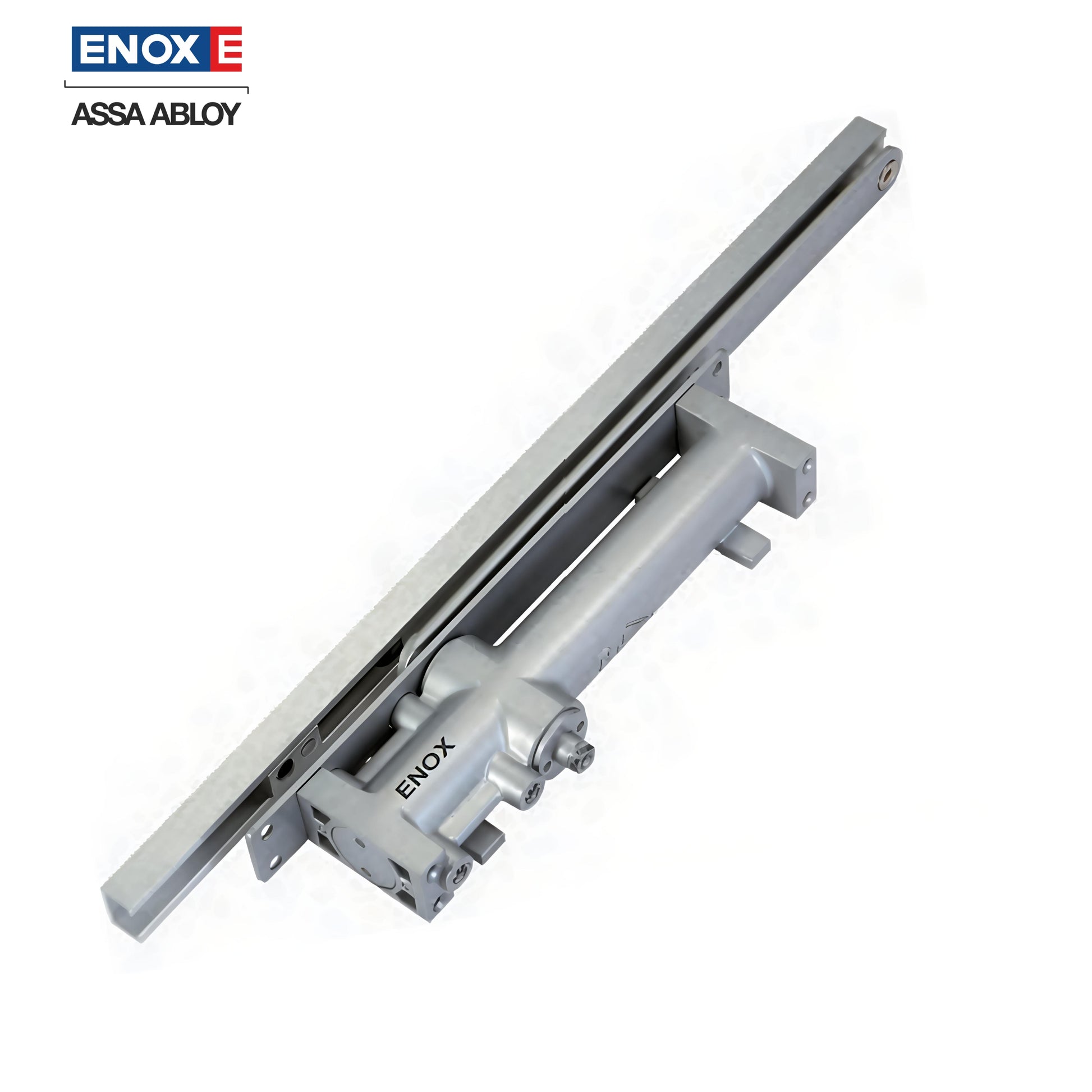

  • An ENOX (Assa Abloy) concealed hydraulic door closer with a sleek satin silver finish and integrated guide rail track. This high-performance architectural hardware is designed for hidden installation within the door or frame, providing smooth, adjustable closing and latching speeds for modern commercial and luxury residential doors.

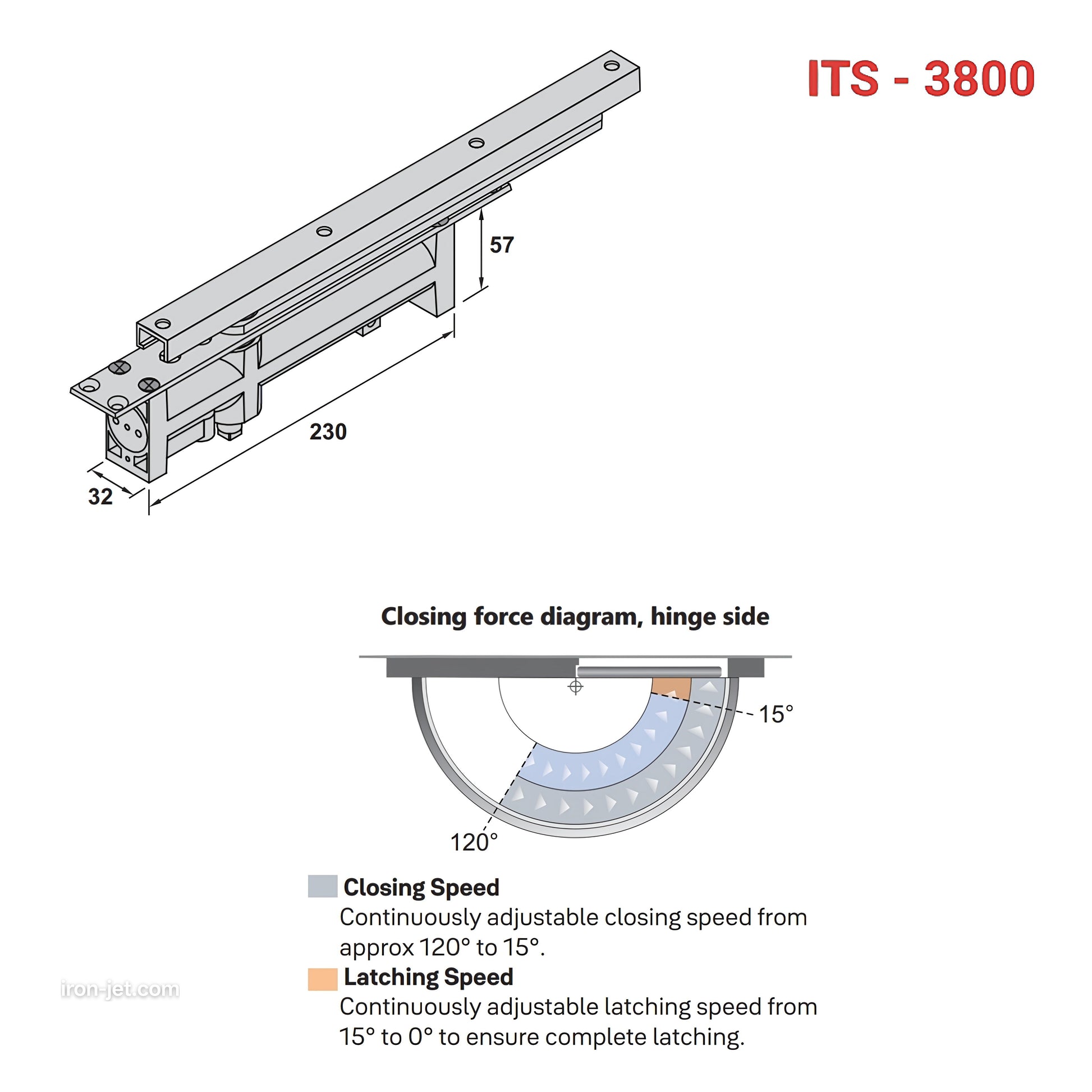

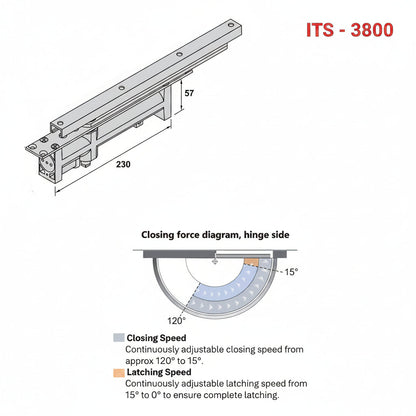

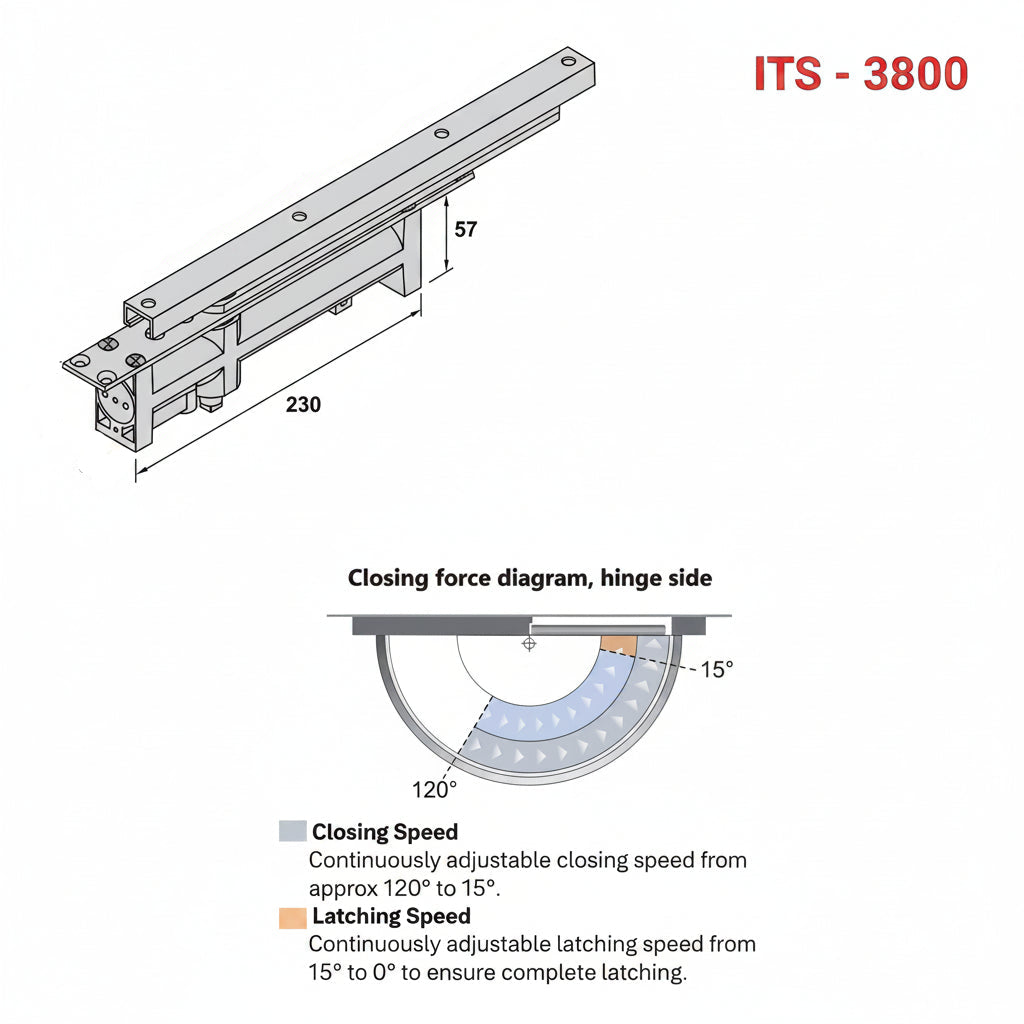

  • A technical dimension diagram for the ITS-3800 concealed overhead door closer, showcasing architectural measurements: 230mm length, 57mm height, and 32mm width. The schematic includes a closing force diagram for the hinge side, illustrating adjustable closing speeds from 120° to 15° and a final latching speed from 15° to 0°. Perfect for specifying high-performance, hidden hydraulic door controls in modern structural design
1 2

Enox ITS 3800 Concealed Door Closer 60kg Capacity, max door width 950 mm (EN 3)

Enox ITS 3800 Concealed Door Closer 60kg Capacity, max door width 950 mm (EN 3)

Color: Silver

Product Details

  • Applicable for Wooden& Metal doors
  •  Durability 500,000 Cycles Tested.
  •  Door weight maximum : 60 kgs
  •  Door width maximum : 950 mm
  •  Marking 90° : Hold open
  •  Work temperature : 40° to 60°
  •  Maximum angle of opening 120°
  •  Minimum door thickness : 40 mm.
  •  Finish - Silver

Technical Specifications

  • Brand : Enox
  • Product Type : Concealed Door Closer
  • Model Number : ITS 3800
  • Power : EN 3
  • Type : Rack & Pinion
  • Hold Open : Yes
  • Body Thickness : 32 mm
  • Durability : 1,00,000 Cycles Tested
  • Unit of count : Piece
  • Item Weight (~) : 1900 Grams

Installation & Fitment

  • Minimum door thickness for installation is 40mm.
  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 950mm
  • Suitable Door Weight 60kg
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, bedroom door, bathroom door, office door etc.

Material & Fitment

  • Aluminium
  • Silver Colour Coating

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Main closing body

1 x Connecting Arm

1 x Mounting Plate

1 x Installation Screws & Hardware

1 x Installation Guide
