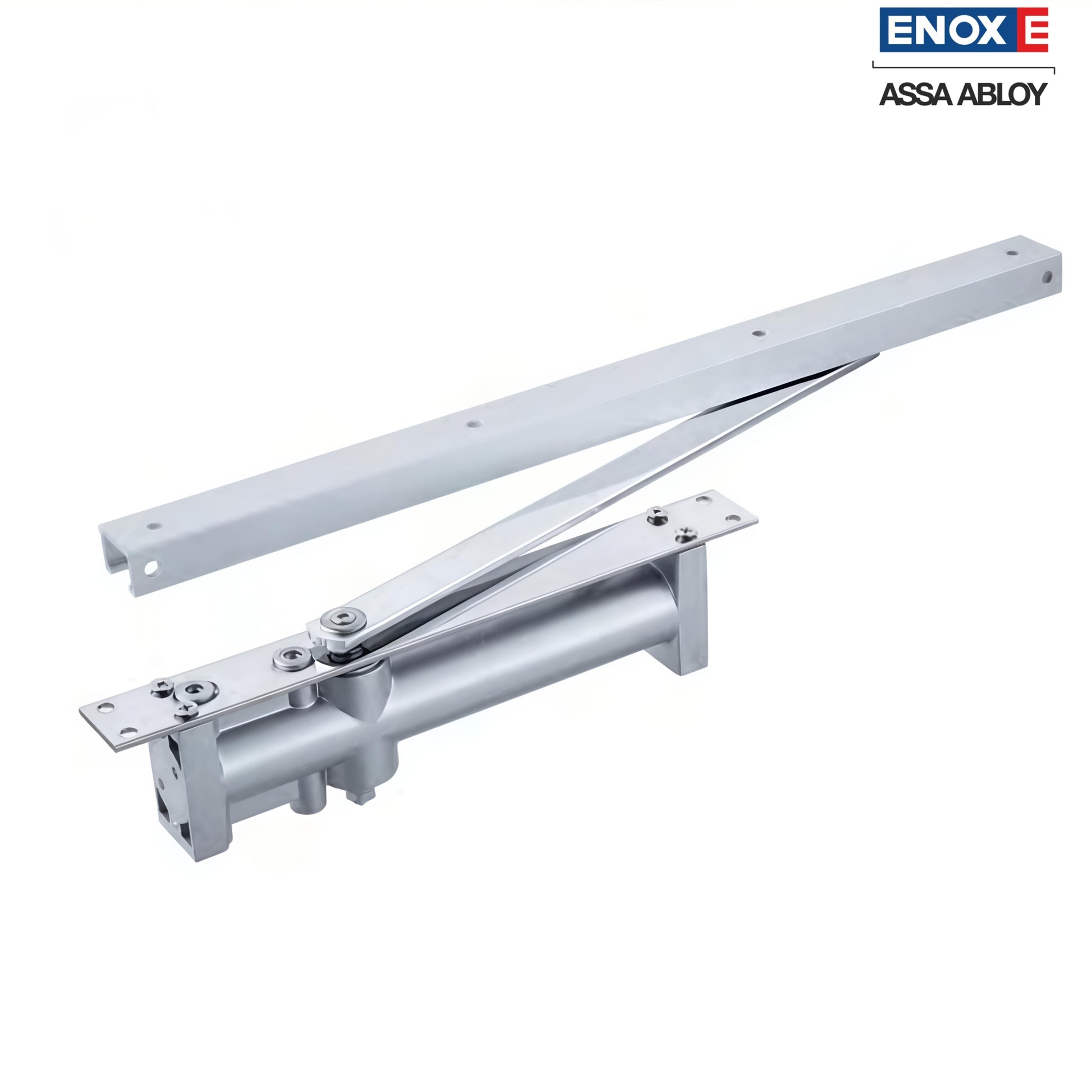

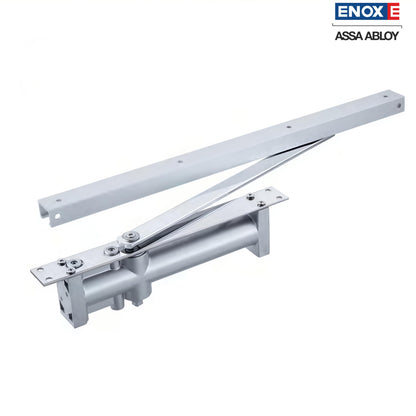

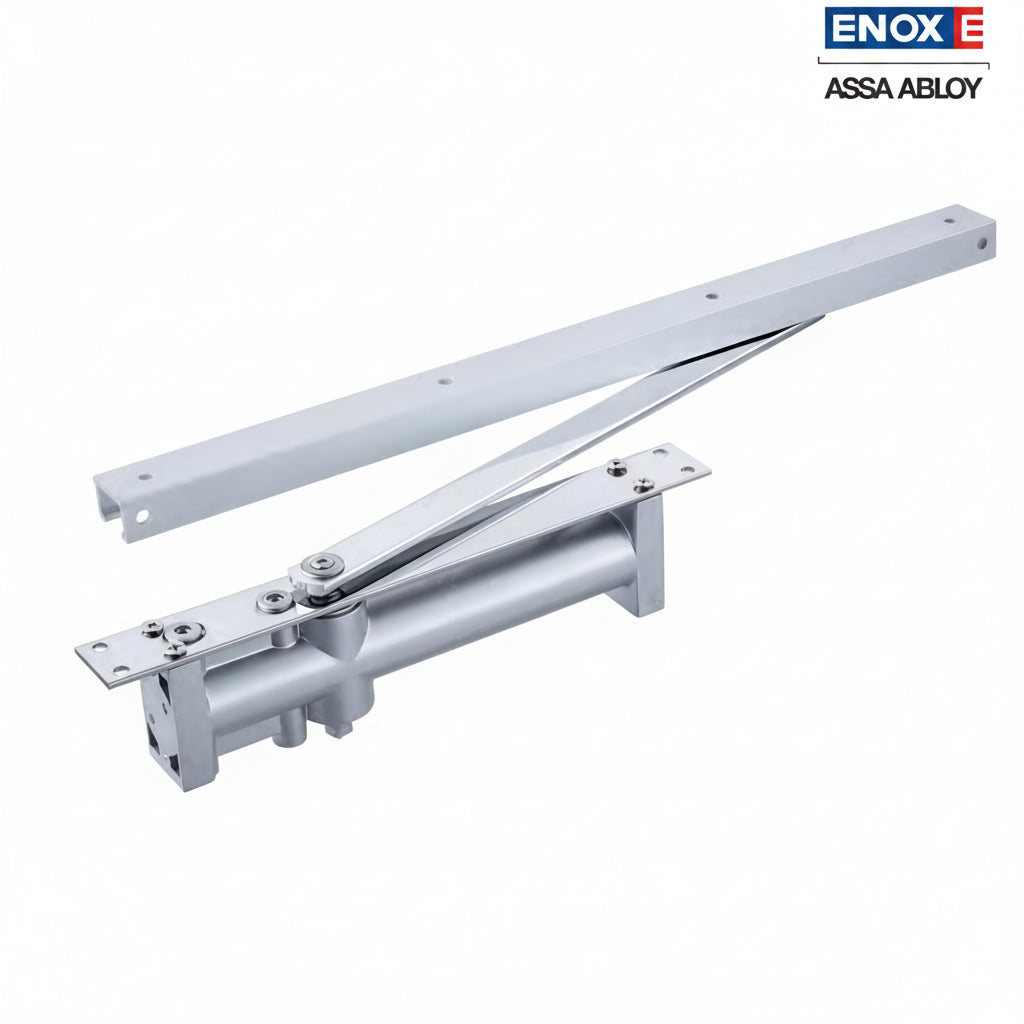

  • An ENOX (Assa Abloy) concealed overhead hydraulic door closer with a premium satin silver finish. The unit features a high-precision guide rail and sliding arm assembly designed for "invisible" installation within the door leaf or frame. This architectural-grade hardware provides smooth, adjustable hydraulic control, ideal for minimalist modern interiors in luxury residential and commercial office spaces.

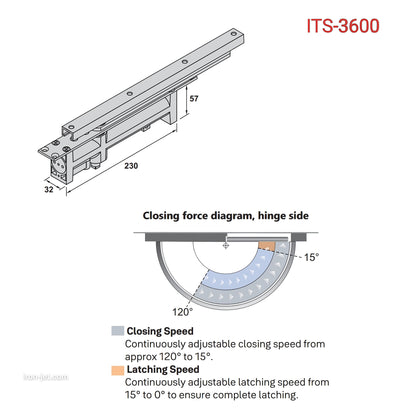

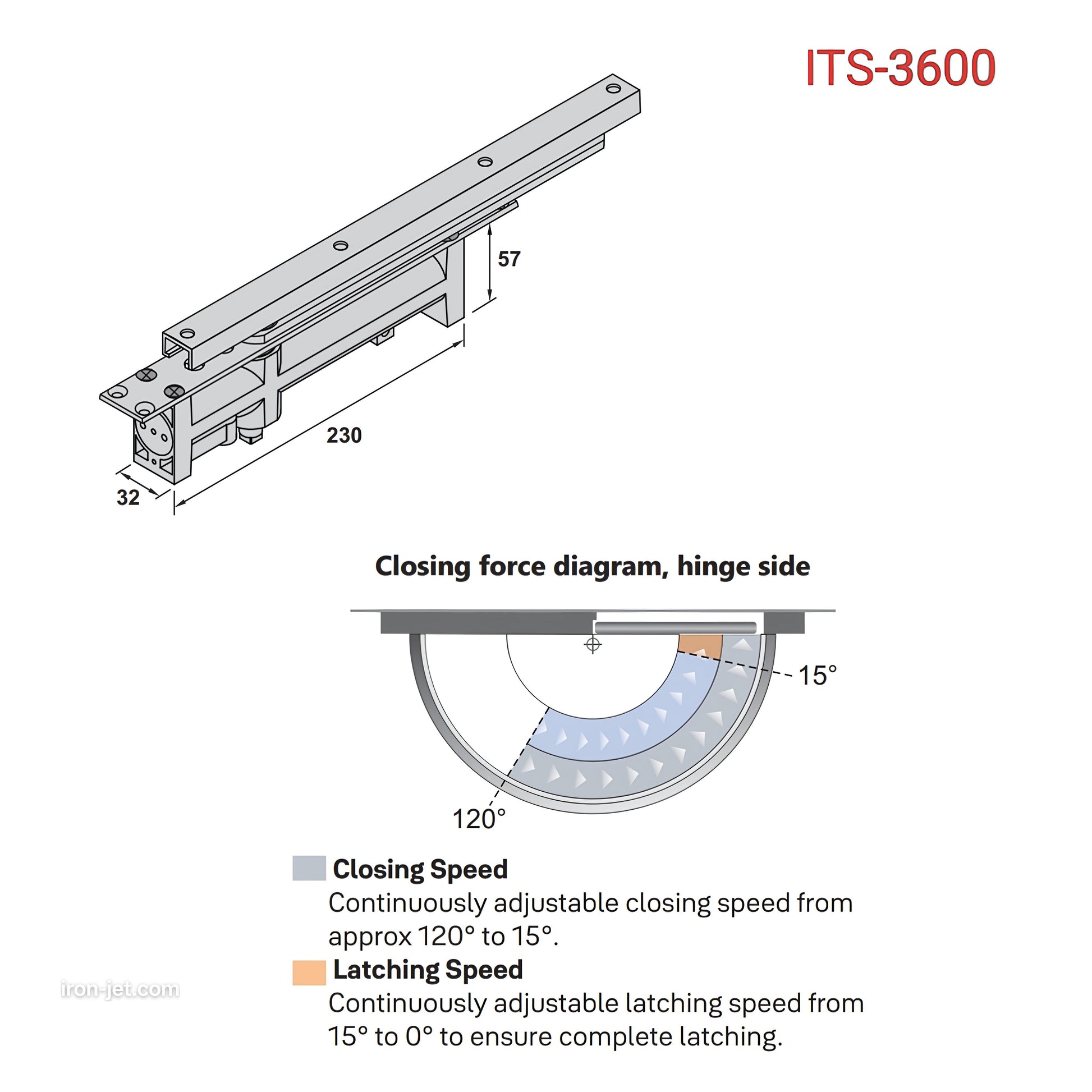

  • A technical dimension diagram for the ITS-3600 concealed overhead door closer, detailing structural measurements of 230mm in length, 57mm in height, and 32mm in width. The schematic includes a closing force diagram for the hinge side, highlighting continuously adjustable closing speeds from 120° to 15° and a dedicated latching speed zone from 15° to 0°. Ideal for specifying hidden hydraulic door controls in architectural projects.
1 2

Enox ITS 3600 Concealed Door Closer 60kg Capacity, max Door width 950 mm (EN 3)

Enox ITS 3600 Concealed Door Closer 60kg Capacity, max Door width 950 mm (EN 3)

Color: Silver

Product Details

  • Applicable for Wooden& Metal doors
  •  Durability 100,000 Cycles Tested
  •  Door weight maximum : 60 kgs
  •  Door width maximum : 950 mm
  •  Marking 90° : Hold open
  •  Work temperature : 40° to 60°
  •  Maximum angle of opening 120°
  •  Minimum door thickness : 40 mm.
  •  Finish - Silver

Technical Specifications

  • Brand : Enox
  • Product Type : Concealed Door Closer
  • Model Number : ITS 3600
  • Power : EN 3
  • Type : Rack & Pinion
  • Hold Open : Yes
  • Body Thickness : 32 mm
  • Durability : 1,00,000 Cycles Tested
  • Unit of count : Piece
  • Item Weight (~) : 1900 Grams

Installation & Fitment

  • Minimum door thickness for installation is 40 mm.
  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 950mm
  • Suitable Door Weight 60kg
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, bedroom door, bathroom door, office door etc.

Material & Fitment

  • Aluminium
  • Silver Colour Coating

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Main closing body

1 x Connecting Arm

1 x Mounting Plate

1 x Installation Screws & Hardware

1 x Installation Guide
