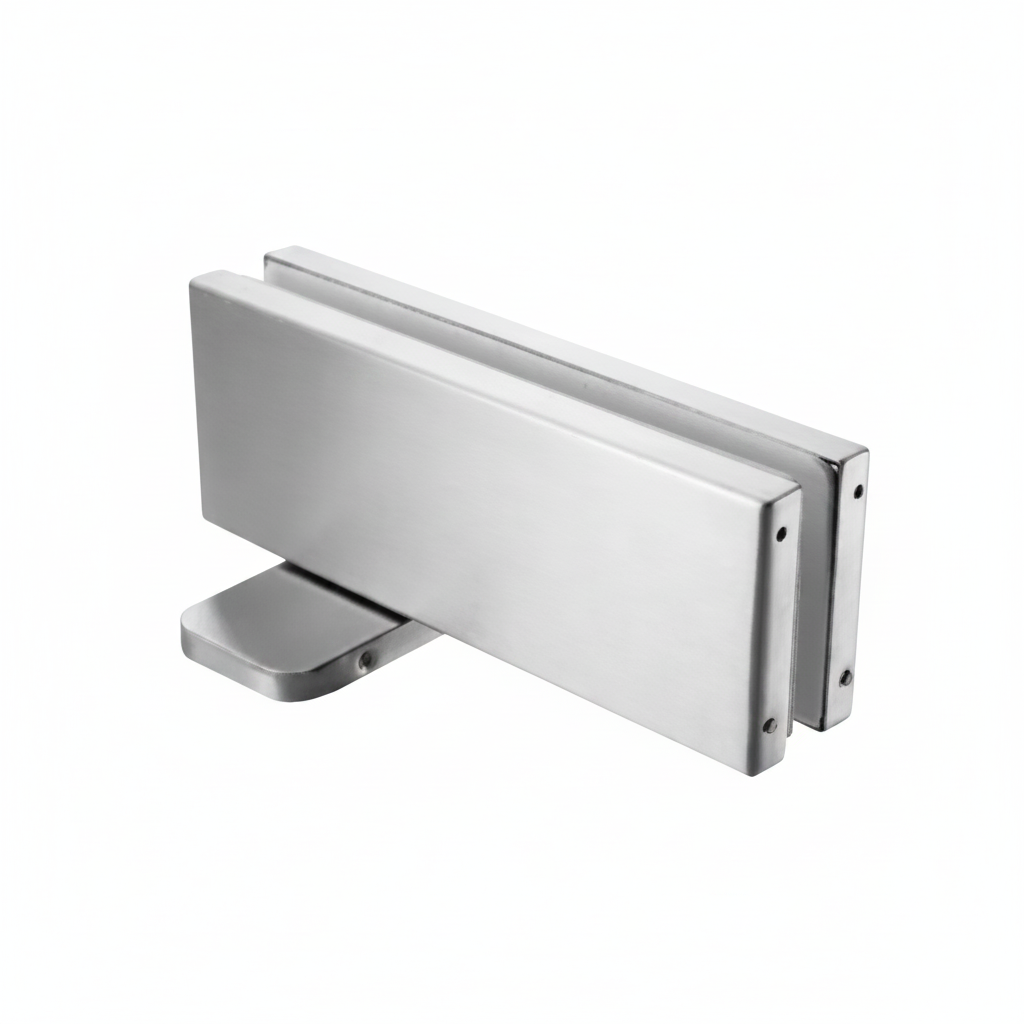

  • A heavy-duty bottom patch fitting for frameless glass doors, featuring a high-quality brushed stainless steel finish and a rectangular profile designed for secure floor pivot mounting in commercial or residential glass entryways.

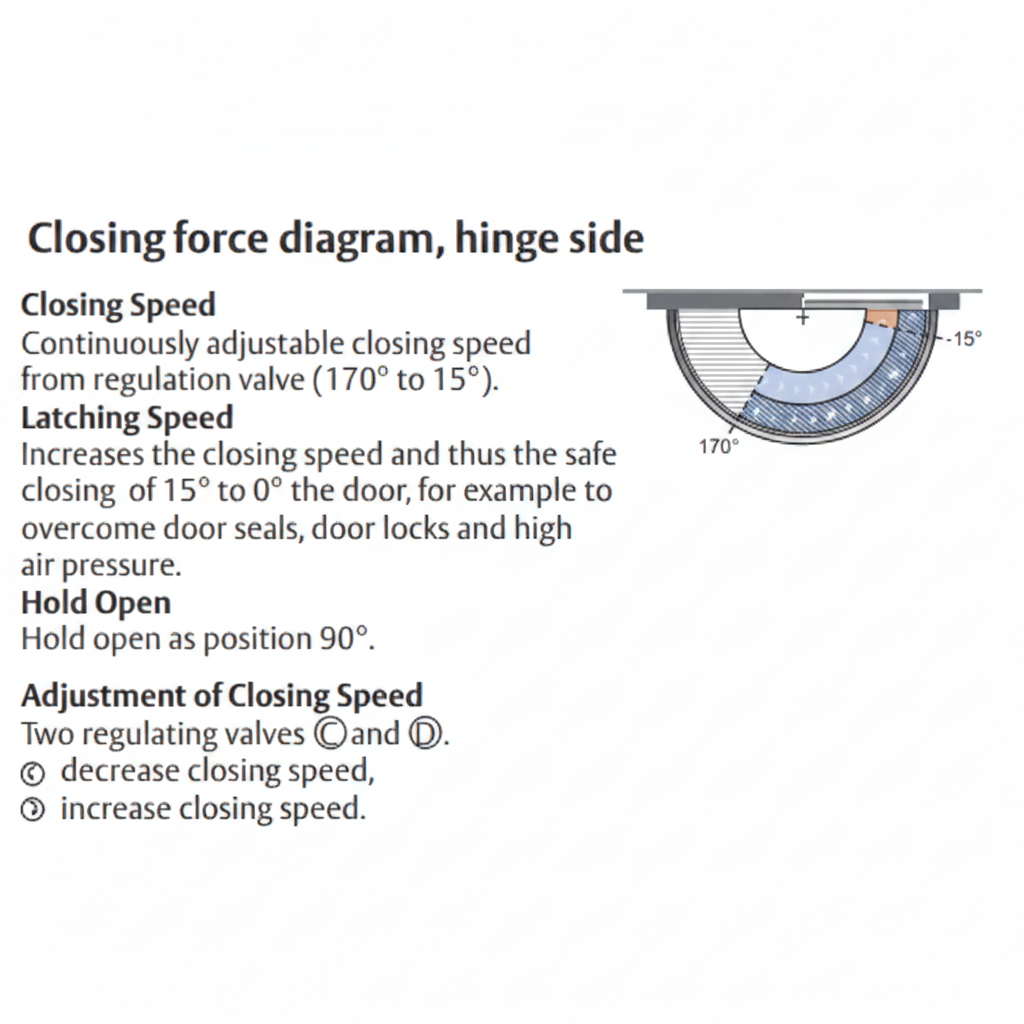

  • A technical diagram illustrating the closing force on the hinge side of a door closer, detailing adjustable closing speeds from 170° to 15°, latching speed from 15° to 0°, and a hold-open position at 90°.

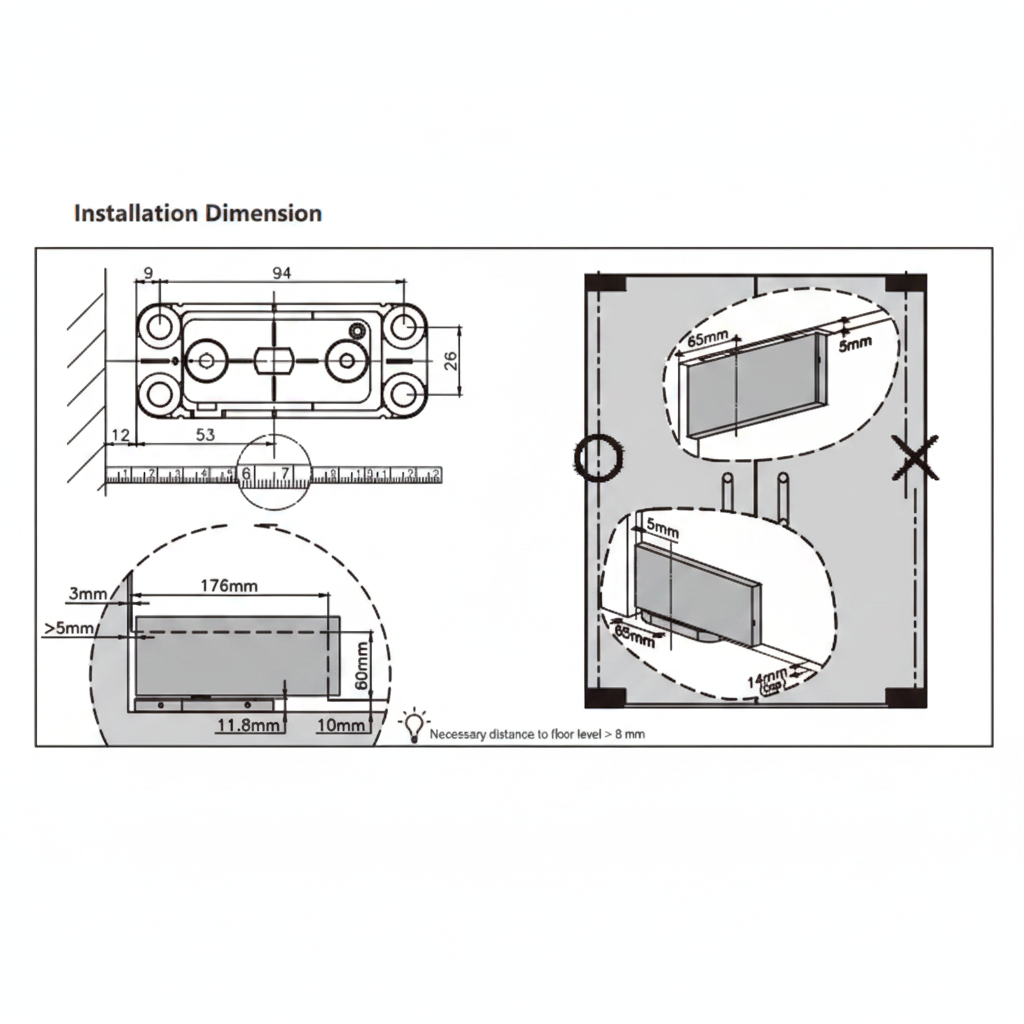

  • A technical installation dimension diagram for a glass door patch fitting, showing top-down and side profile measurements including a 176mm body length, 60mm height, and a required 8mm floor clearance for proper mounting.
1 3

Enox Hydraulic Floor Patch (FH 100)

Enox Hydraulic Floor Patch (FH 100)

Color: Silver

Product Details

The Enox Hydraulic Floor Patch (FH 100) is a high-performance floor-mounted door control system designed for double action swing doors, offering smooth and controlled opening and closing. Built with a durable hydraulic mechanism and premium stainless steel finish, it ensures long-lasting performance and reliability. Suitable for glass doors (8–12 mm thickness), it supports doors up to 950 mm width and 60–80 kg weight, making it ideal for commercial and residential applications. With features like adjustable closing speed, 90° hold-open function, and wide opening angle up to 120°, the FH 100 provides both functional efficiency and a clean, modern floor-integrated look.

  • Hydraulic floor patch for double action swing door to be installed on the floor.
  •  Max. door opening angle in each direction : 120°
  • Hold open angle : 90°.
  • Suitable glass thickness - 8 to 12mm
  • Maximum door width - 950 mm
  • Maximum door weight - 60kgs ~ 80 kgs.
  • Durability - 500,000 Cycles.

Product Details

Brand

Enox

Product Type

 Concealed Door Closer

Unit

 Per Piece

Finishing

 Silver

Material

Aluminium

Warrenty

1 Year

Features

 The Enox Hydraulic Floor Patch (FH 100) features a heavy-duty hydraulic mechanism for smooth and controlled door movement. It supports double action opening with a wide opening angle up to 120° and includes a 90° hold-open function for convenience. Designed for glass doors (8–12 mm), it can handle doors up to 80 kg, ensuring strong and stable performance. The product offers adjustable closing speed, a durable stainless steel finish, and long-lasting reliability, making it ideal for high-traffic areas.

Specific Use

The Enox Hydraulic Floor Patch (FH 100) is specifically used for smooth and controlled operation of glass doors in commercial and high-traffic areas. It is ideal for office entrances, showrooms, malls, hotels, and retail stores, where double action door movement and a clean floor-mounted setup are required. The product helps ensure safe, silent closing and easy access from both sides, while maintaining a modern and professional appearance.
