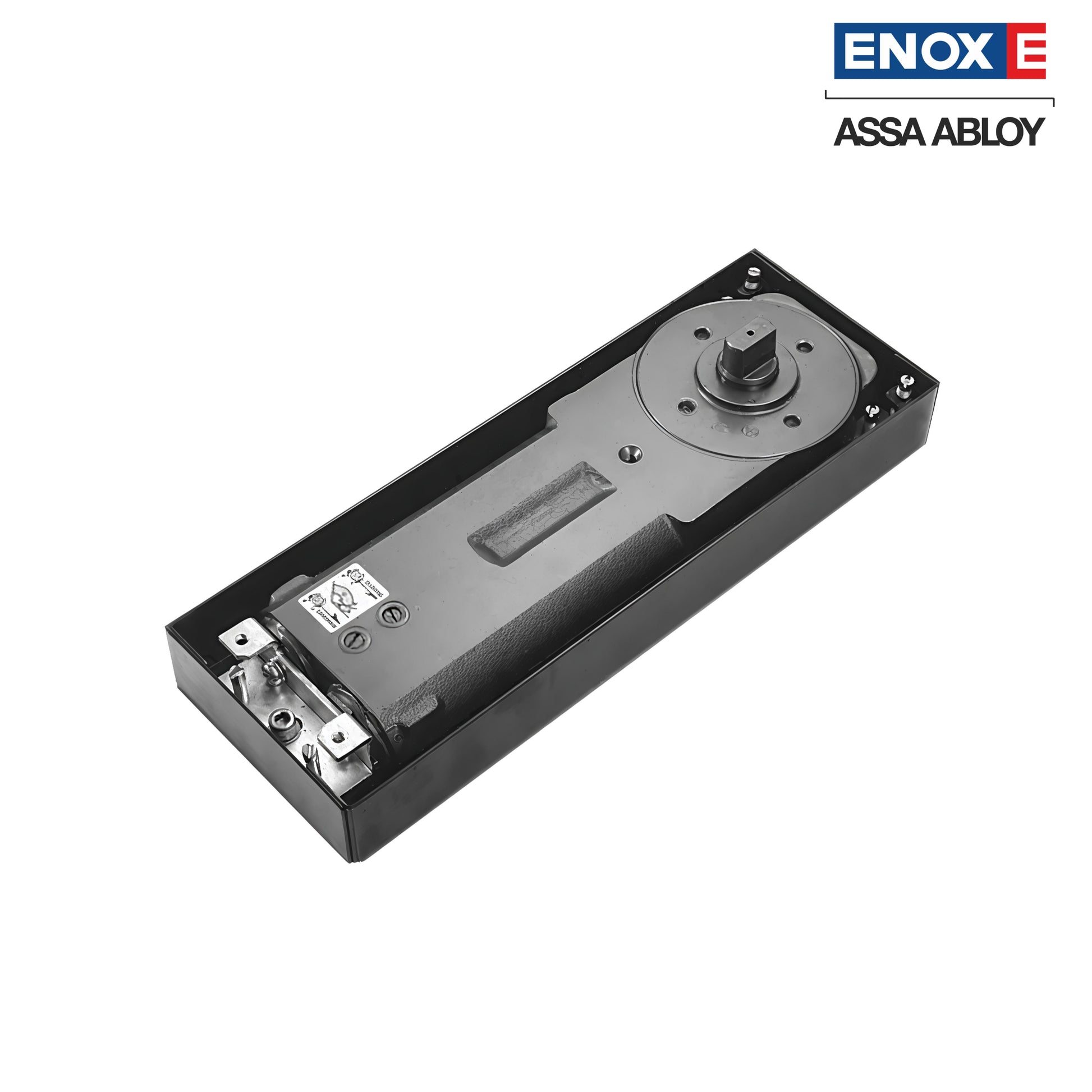

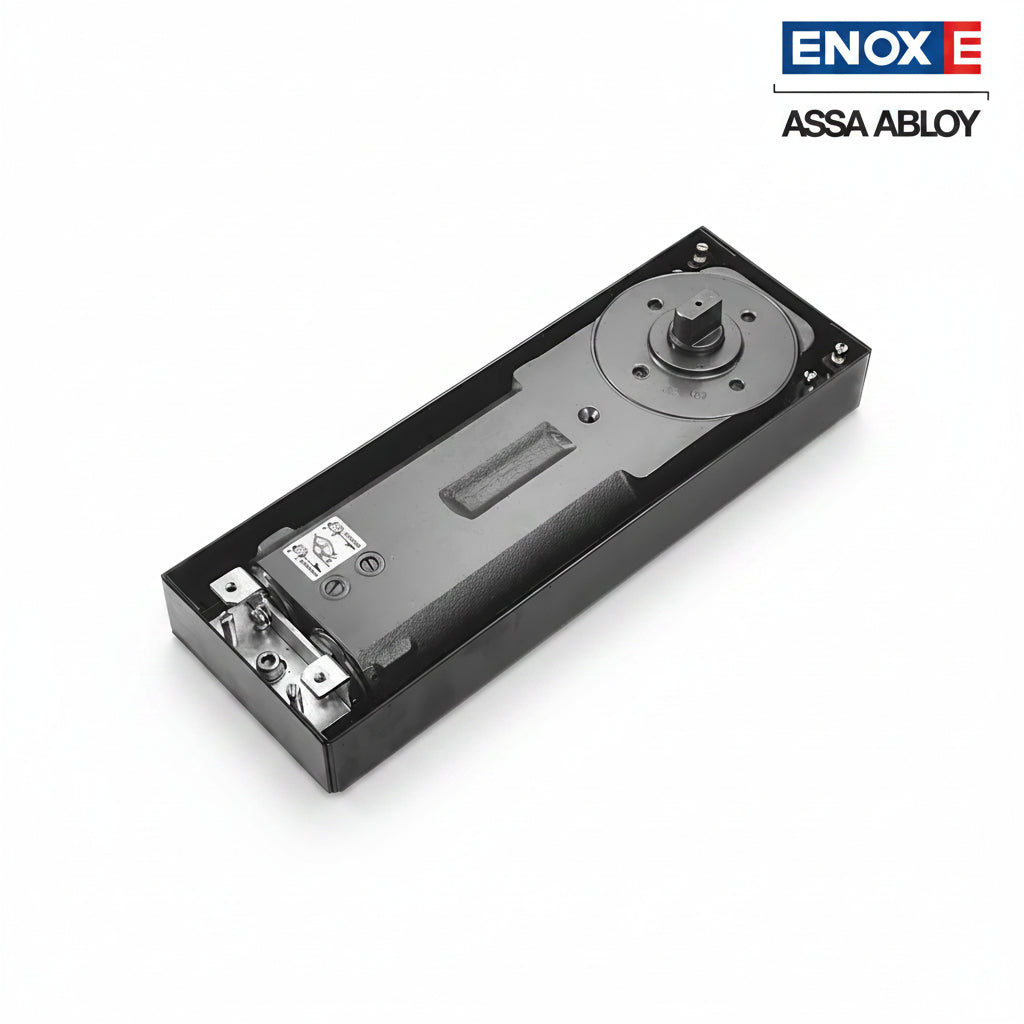

  • A high-performance ENOX (Assa Abloy) hydraulic floor spring closer body housed in a durable black cement box. This architectural hardware features a robust cast iron mechanism with integrated adjustment valves for closing and latching speeds. Designed for recessed floor mounting, it provides invisible, heavy-duty door control for frameless glass, timber, or metal doors in high-traffic commercial and luxury residential entrances.

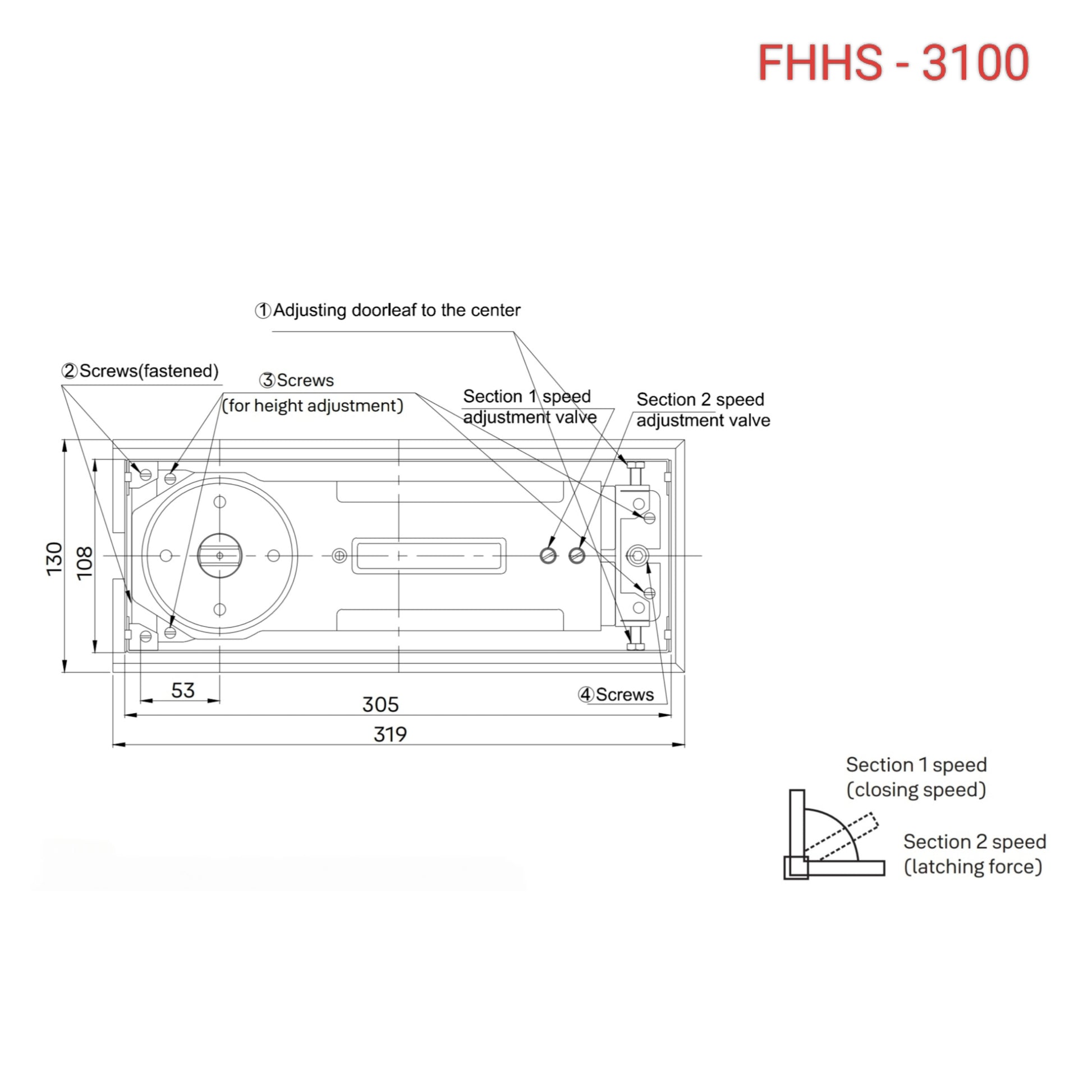

  • A technical dimension and adjustment diagram for the FHHS-3100 hydraulic floor spring. The schematic details architectural measurements, including a 305mm body length and 108mm width, alongside a 319mm cover plate. It provides clear instructions for mechanical calibration, highlighting screws for height adjustment, door leaf centering, and dual valves for Section 1 (closing speed) and Section 2 (latching force) control. Essential for the precise installation of floor-mounted door closers in commercial glass
1 2

Enox Floor Spring FHHS 3100 - 100kg Combo Set Incl.( Top Patch, Bottom Patch & T Pivot)

Enox Floor Spring FHHS 3100 - 100kg Combo Set Incl.( Top Patch, Bottom Patch & T Pivot)

Color: Satin

Product Details

  • Applicable for Glass, Wooden & Metal Doors.
  • Door weight maximum : 100kgs.
  • Door width maximum : 1000 mm.
  • Durability 500,000 Cycles Tested.
  • Marking 90° : Hold open.
  • Cylinder is made of high quality cast iron And SS304 Cover Plate.
  • Maximum angle of opening 130°
  • Patch Fitting Suitable for tempered glass door thickness of 10-12mm
  • Finish : Stainless Steel

Technical Specifications

  • Brand : Enox
  • Product Type : Floor Spring
  • Model Number : FHHS 3100
  • Power : EN 3
  • Type : Double Cylinder
  • Hold Open : Yes
  • Unit of count : Piece
  • Item Weight (~) : 6500 Grams

Installation & Fitment

  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 1000mm
  • Suitable Door Weight 100kg
  • Concealed Box Size 305 mm x 108 mm x 50 mm
  • Cover Plate Size : 319 mm x 130 mm
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, Office Door, Building Lobby etc.

Material & Fitment

  • Cast Iron Main Body & SS 304 Cover Plate
  • Anti Corrosion Black Colour & SS Matt finish on Plate

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Floor Spring with Box & Cover Plate

1 x Top Ptach

1 x Bottom Patch

1 x T Pivot

1 x Installation Screws & Hardware

1 x Installation Guide
