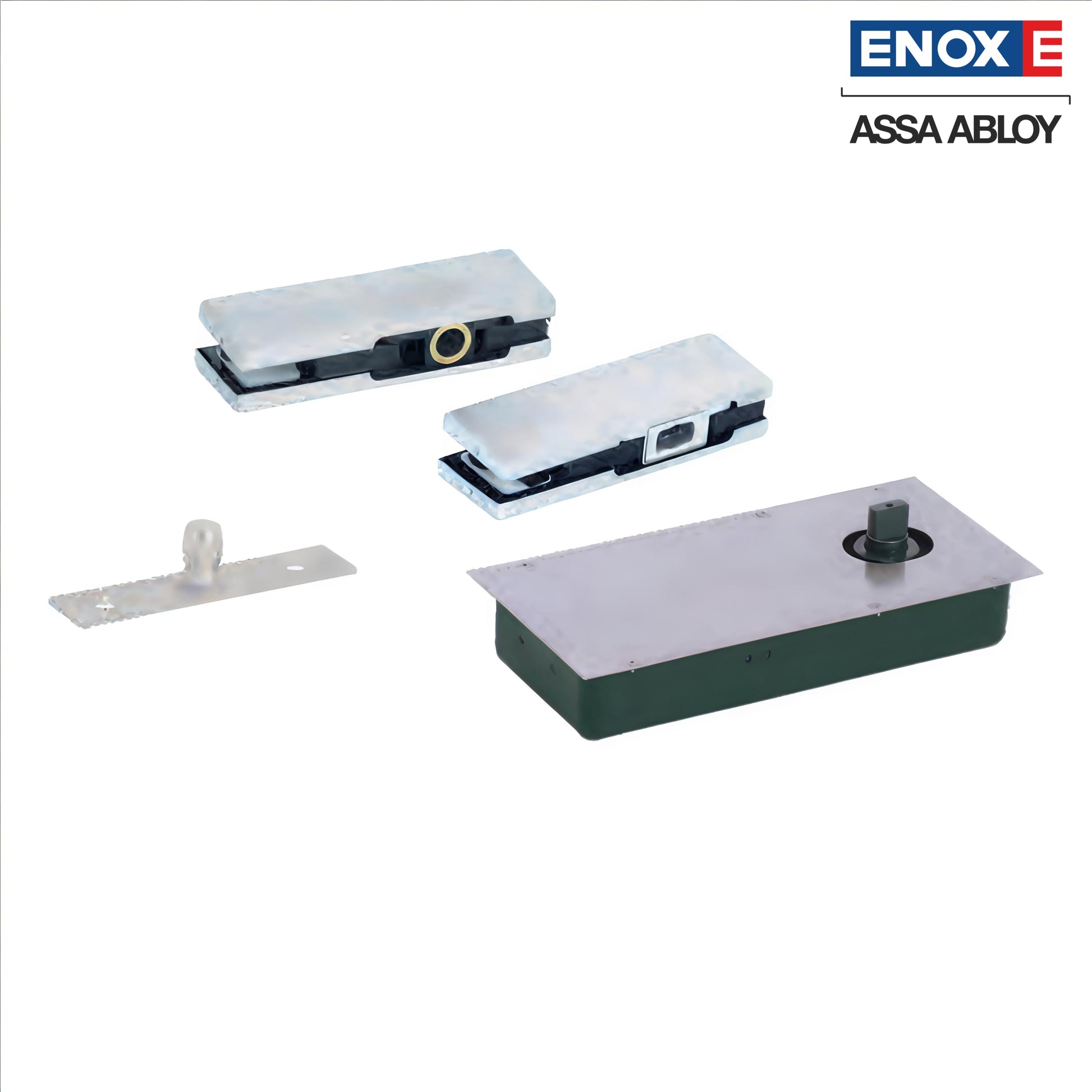

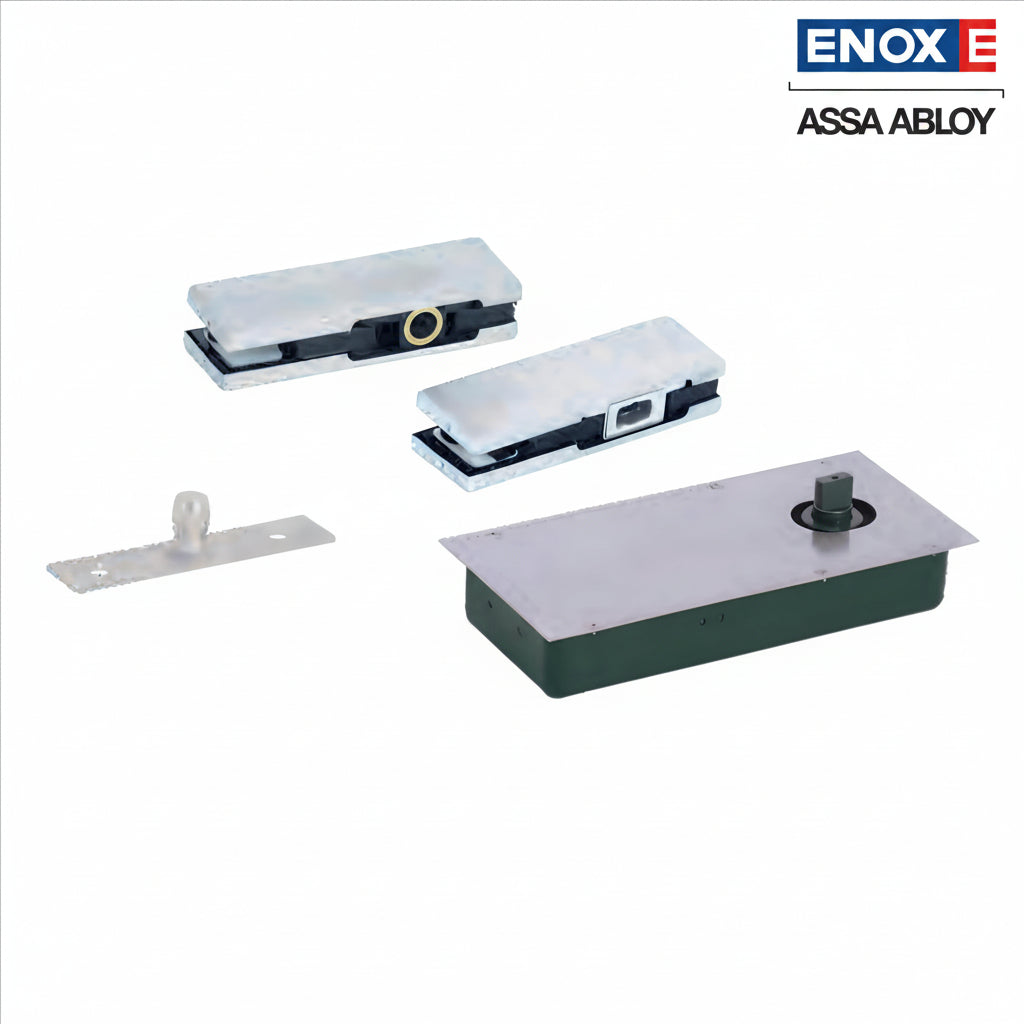

  • A complete ENOX (Assa Abloy) floor spring hardware kit featuring a heavy-duty hydraulic floor-mounted closer and a set of premium glass patch fittings. The kit includes a stainless steel cover plate, top pivot, and bottom strap designed for frameless glass door installations. This architectural hardware system provides smooth self-closing functionality and structural support for modern commercial glass entrances and office partitions.

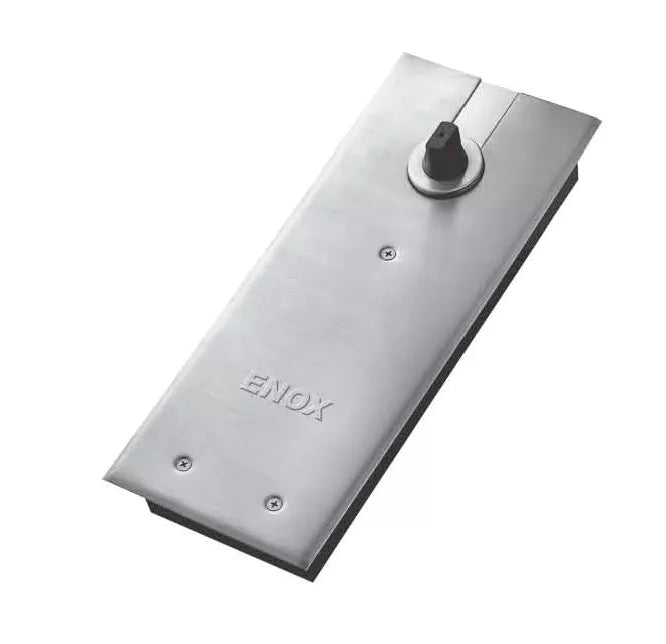

  • A professional-grade ENOX hydraulic floor spring featuring a high-quality brushed stainless steel cover plate. This heavy-duty floor-mounted closer is designed for frameless glass or wooden doors, providing smooth, adjustable self-closing control and 90-degree hold-open functionality. Ideal for high-traffic commercial entrances, showrooms, and modern office partitions where durable and reliable door hardware is essential.
  • A technical dimension diagram for a heavy-duty hydraulic floor spring door closer. The schematic details the structural measurements of the closer body—250mm length, 110mm width, and 50mm depth—alongside its corresponding stainless steel cover plate measuring 266mm by 126mm. This architectural drawing provides essential installation data for recessed floor-mounted closers used in glass and wooden door systems.

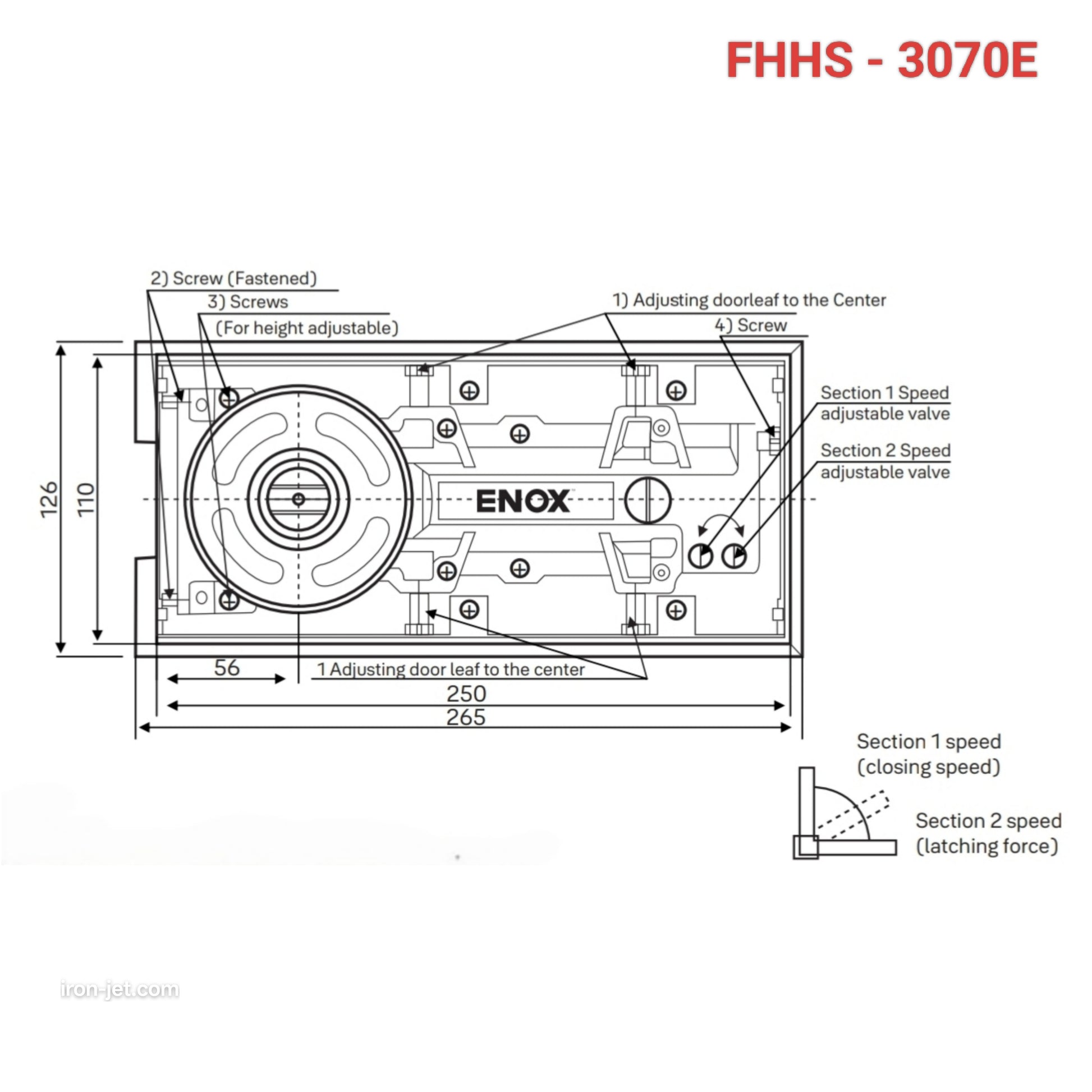

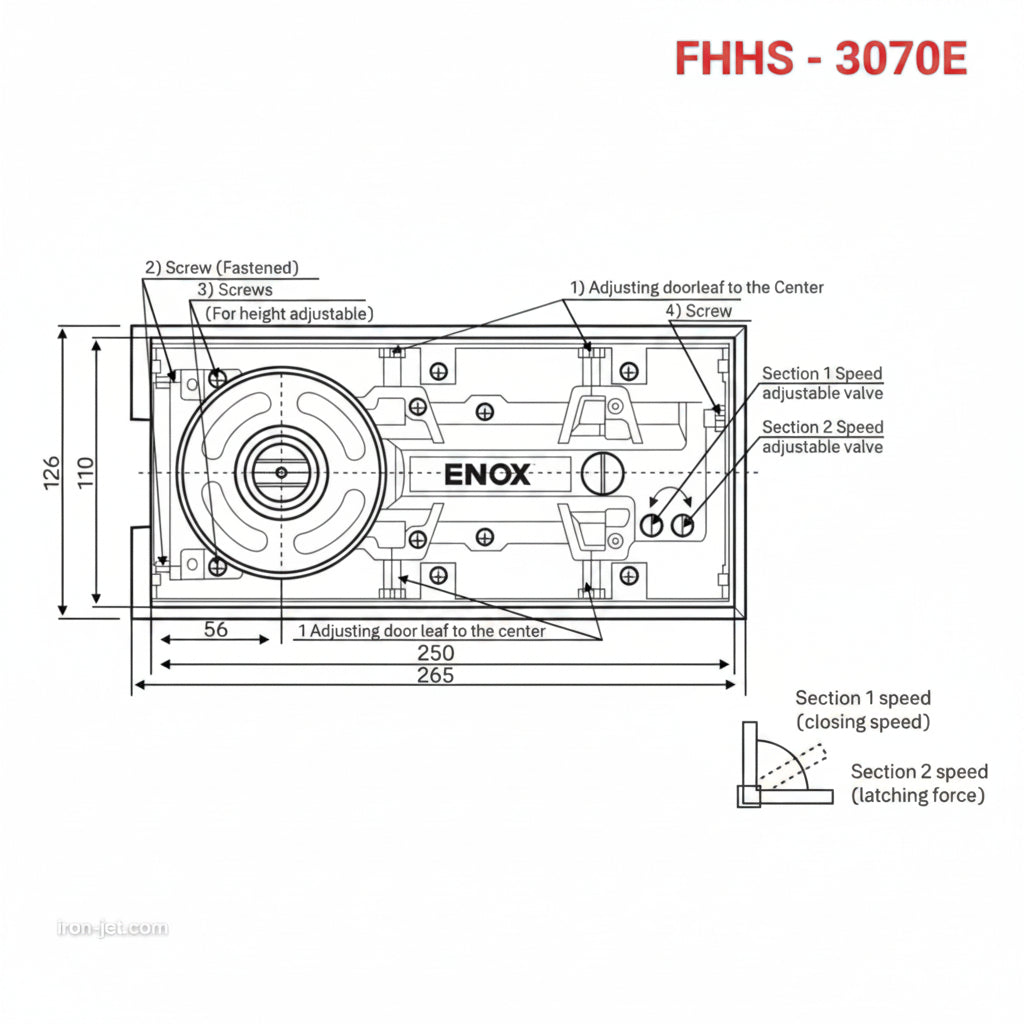

  • A technical adjustment and dimension diagram for the ENOX FHHS-3070E hydraulic floor spring. The schematic details architectural measurements, including a 250mm body length and 110mm width, and provides instructions for mechanical adjustments. It highlights the location of height adjustment screws, center alignment screws, and the dual valves for Section 1 (closing speed) and Section 2 (latching force) control. Essential for professional installation and calibration of floor-mounted glass door closers.
1 4

Enox Floor Spring FHHS 3070E 75kg Capacity (Combo Set Incl. Top Patch, Bottom Patch, T Pivot) (EN 2)

Enox Floor Spring FHHS 3070E 75kg Capacity (Combo Set Incl. Top Patch, Bottom Patch, T Pivot) (EN 2)

Color: Silver

Product Details

  • Applicable for Glass, Wooden & Metal Doors.
  •  Door weight maximum : 75 kgs.
  •  Door width maximum : 850 mm.
  •  Marking 90° : Hold open..
  •  Durability 500,000 Cycles Tested
  • Cylinder is made of high quality cast iron And SS304 Cover Plate.
  •  Maximum angle of opening 120°
  • Patch Fitting Suitable for tempered glass door thickness of 10-12mm.
  •  Finish : Stainless Steel

Technical Specifications

  • Brand : Enox
  • Product Type : Floor Spring
  • Model Number : FHH 3070 E
  • Power : EN 2
  • Type : Single Cylinder
  • Hold Open : Yes
  • Durability : 5,00,000 Cycles Tested
  • Unit of count : Piece
  • Item Weight (~) : 4000 Grams

Installation & Fitment

  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 850mm
  • Suitable Door Weight 75kg
  • Concealed Box Size 250 x 110 mm
  • Cover Plate Size : 266 x 126 mm
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, Office Door, Building Lobby etc.

Material & Fitment

  • Cast Iron Main Body & SS 304 Cover Plate
  • Anti Corrosion Black Colour & SS Matt finish on Plate

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Floor Spring with Box & Cover Plate

1 x Top Ptach

1 x Bottom Patch

1 x T Pivot

1 x Installation Screws & Hardware

1 x Installation Guide
