Enox Floor Spring FH 943 | FH 944 | FH 944 H
Enox Floor Spring FH 943 | FH 944 | FH 944 H
Couldn't load pickup availability
Product Details
- Applicable for Glass, Wooden & Metal Doors.
- Door weight maximum : FH 943 (105 Kg), FH 944 (150 Kg), FH 944 H ( 250 Kg)
- Door width maximum : FH 943 (950 mm), FH 944 (1100 mm), FH 944 H (1250 mm)
- Durability 500,000 Cycles Tested.
- Marking 90° : Hold open.
- Cylinder is made of high quality cast iron And SS304 Cover Plate.
- Maximum angle of opening 130°
- Ptach Fitting Suitable for tempered glass door thickness of 10-12mm
- Finish : Stainless Steel
Technical Specifications
Technical Specifications
- Brand : Enox
- Product Type : Floor Spring
- Model Number : FH 943 | FH 944 | FH 944 H
- Power : EN 3 | EN 4 | EN 5
- Type : DoubleCylinder
- Hold Open : Yes
- Unit of count : Piece
- Item Weight (~) : 5700 Grams
Installation & Fitment
Installation & Fitment
- Suitable for Right Handle & Left Hand Opening door.
- Door width Maximum (FH 943 | FH 944 | FH 944 H) : 950 mm | 1100 mm | 1250 mm
- Suitable Door Weight ( FH 943 | FH 944 | FH 944 H) : 105kg | 150kg | 250kg

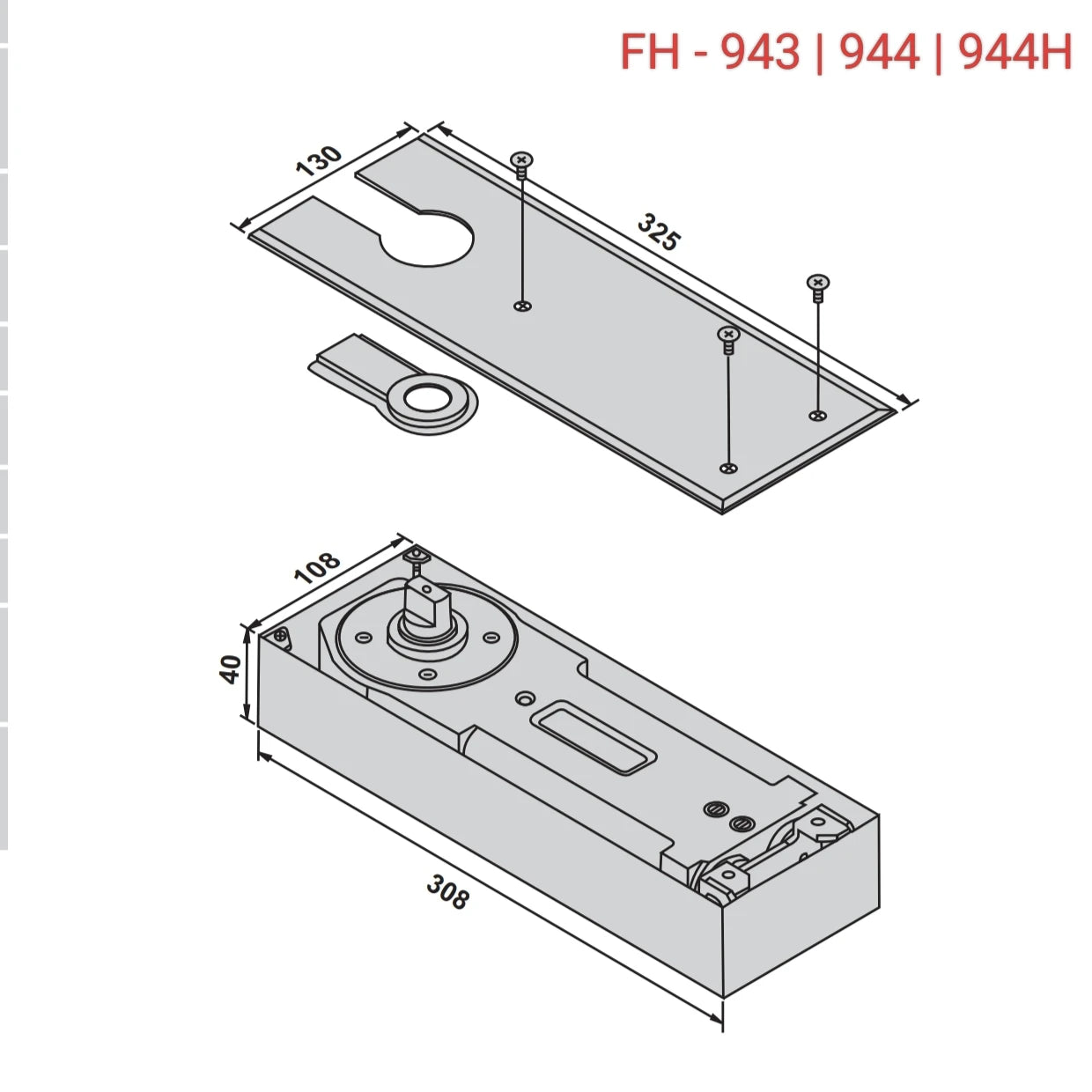

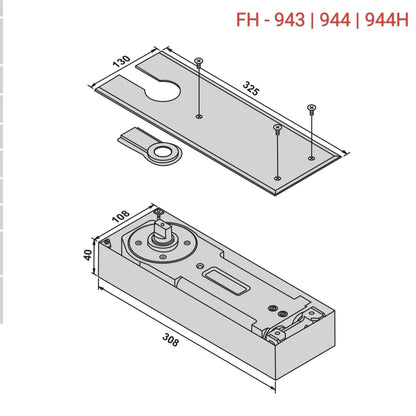

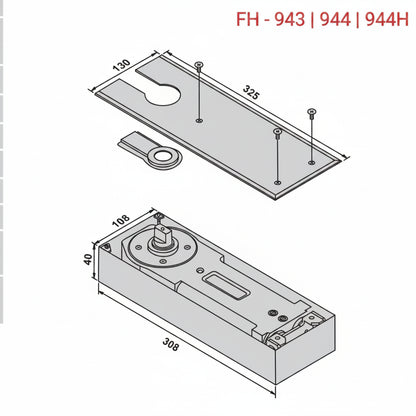

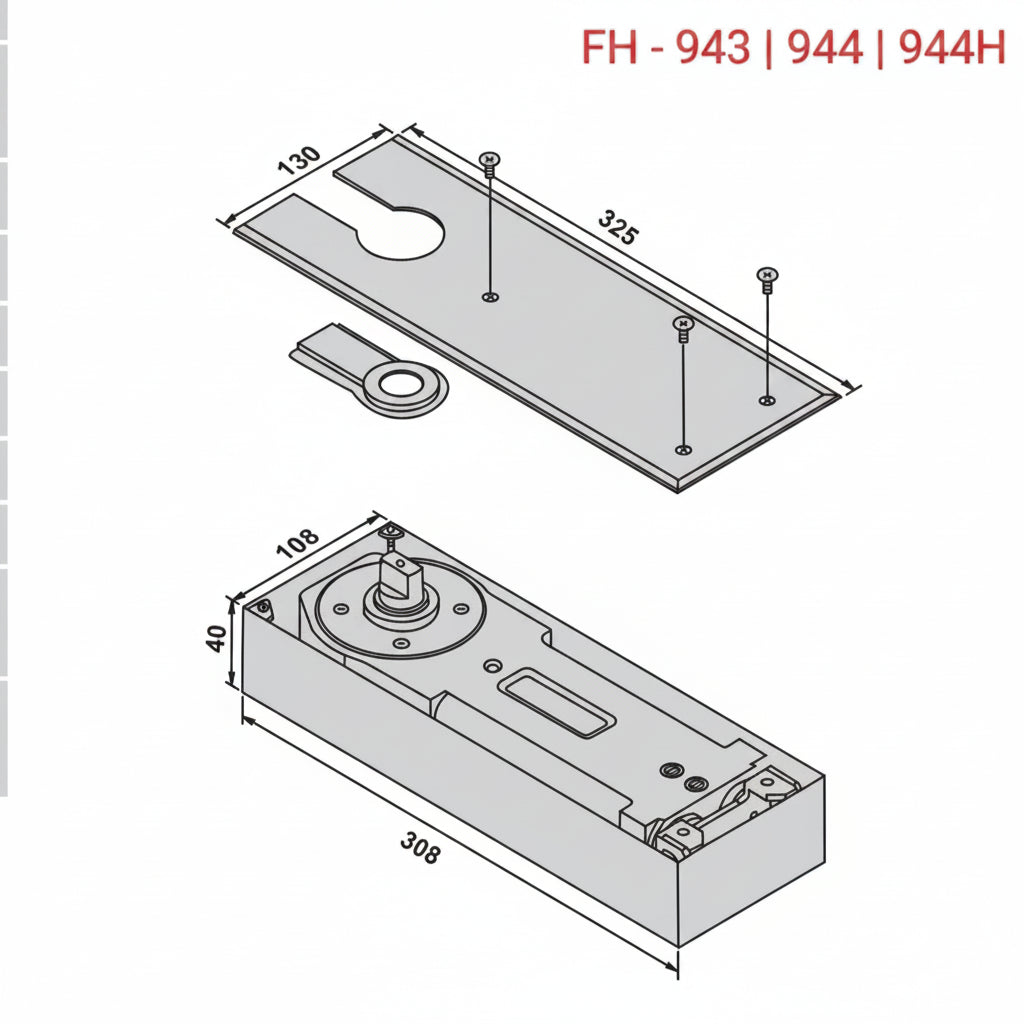

- Concealed Box Size 308 mm x 108 mm x 40 mm
- Cover Plate Size : 325 mm x 130 mm
- Adjustment latching speed and adjustable door closing speed
- Suitable for Main door, Office Door, Building Lobby etc.
Material & Fitment
Material & Fitment
- Cast Iron Main Body & SS 304 Cover Plate
- Anti Corrosion Black Colour & SS Matt finish on Plate
Warranty & Support
Warranty & Support
5 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887
Inside the Box
Inside the Box
1 x Floor Spring with Box & Cover Plate
1 x Installation Screws & Hardware
1 x Installation Guide
