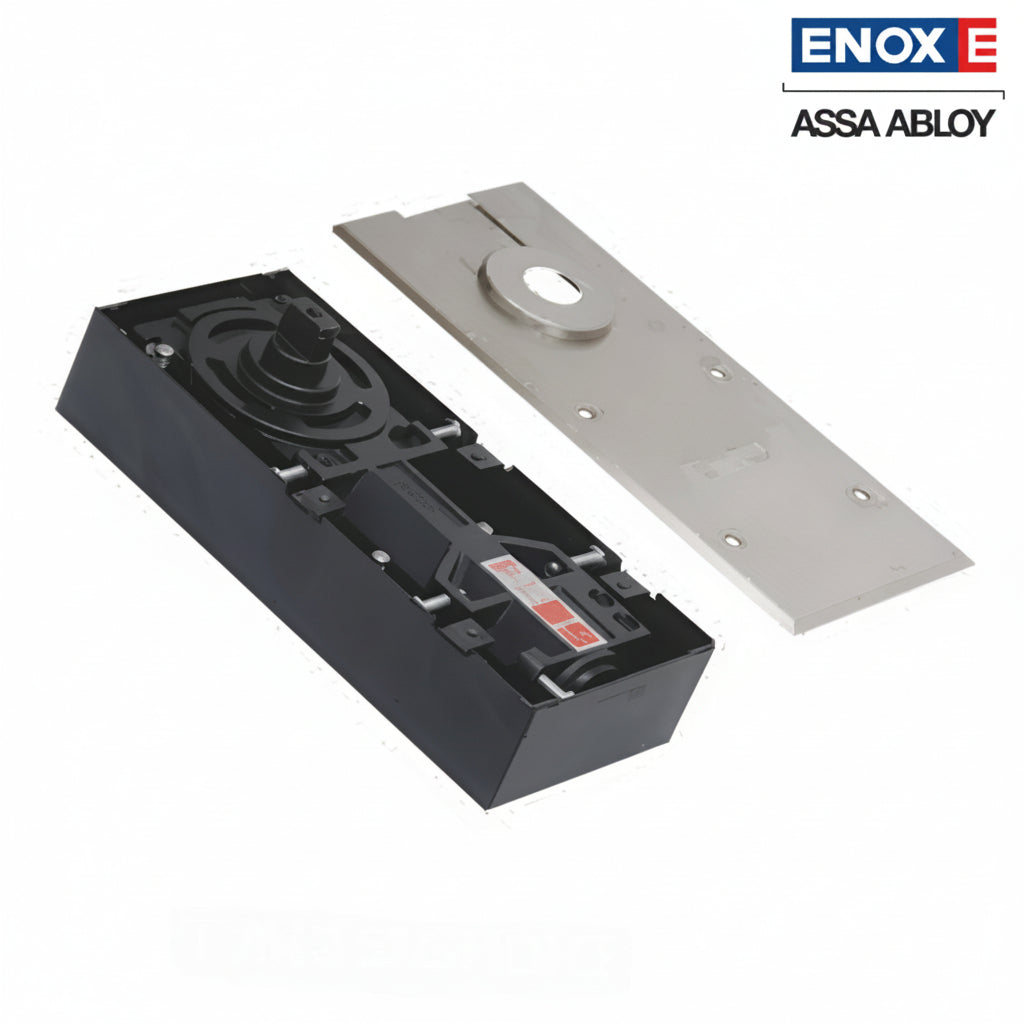

  • A high-performance ENOX (Assa Abloy) hydraulic floor spring assembly featuring a heavy-duty black cement box housing and a matching satin stainless steel cover plate. This architectural floor-mounted closer is designed for recessed installation, providing invisible and durable door control for frameless glass, timber, or metal doors. It includes integrated valves for adjustable closing and latching speeds, ideal for modern commercial entrances and high-end residential interiors.

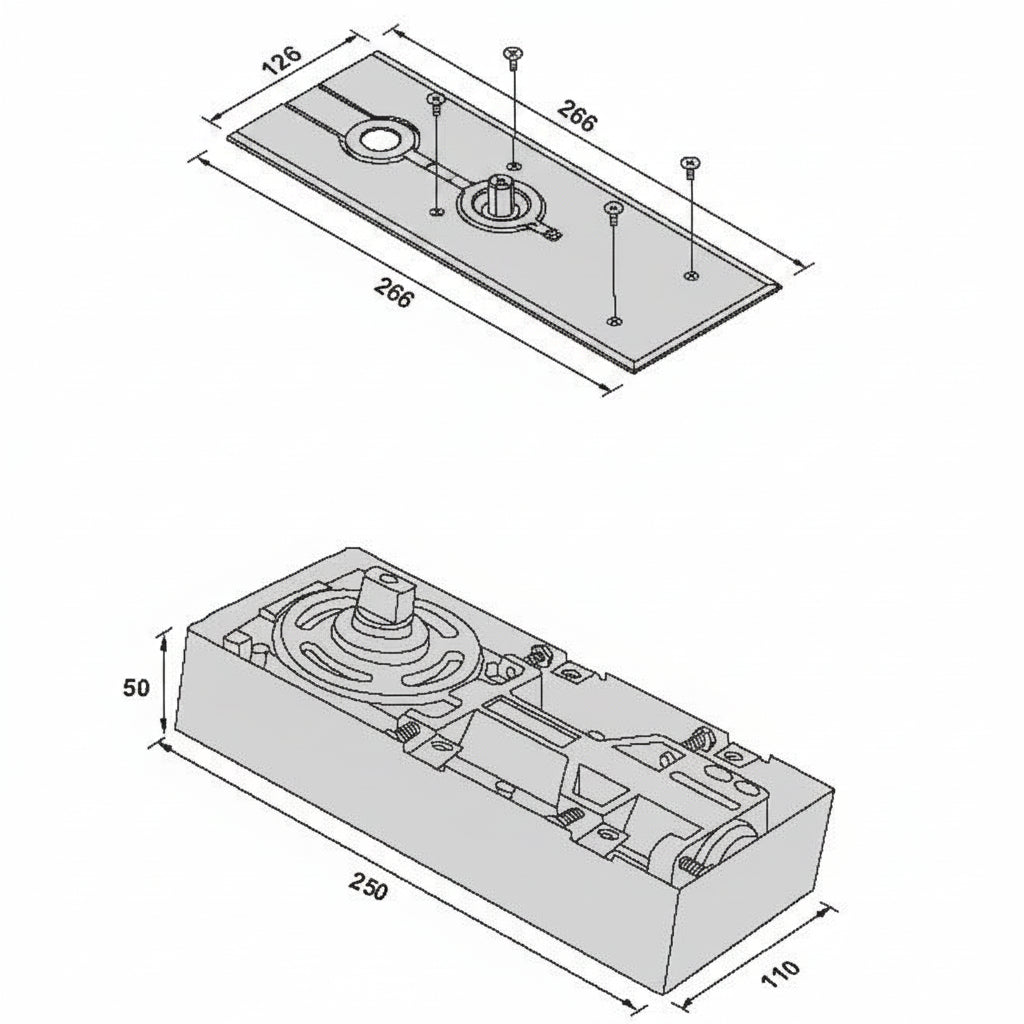

  • A technical dimension diagram for a heavy-duty hydraulic floor spring door closer. The schematic details the structural measurements of the closer body—250mm length, 110mm width, and 50mm depth—alongside its corresponding stainless steel cover plate measuring 266mm by 126mm. This architectural drawing provides essential installation data for recessed floor-mounted closers used in glass and wooden door systems.
1 2

Enox Floor Spring EFS 3080 - 80kg Capacity, Max Door width 850mm

Enox Floor Spring EFS 3080 - 80kg Capacity, Max Door width 850mm

Product Details

  • Applicable for Glass, Wooden & Metal Doors.
  •  Door weight maximum : 80 kgs.
  •  Door width maximum : 850 mm.
  •  Marking 90° : Hold open.
  • Cylinder is made of high quality cast iron And SS304 Cover Plate.
  •  Maximum angle of opening 120°
  •  Finish : Stainless Steel

Technical Specifications

  • Brand : Enox
  • Product Type : Floor Spring
  • Model Number : EFS 3080
  • Power : EN 2
  • Type : Single Cylinder
  • Hold Open : Yes
  • Unit of count : Piece
  • Item Weight (~) : 4000 Grams

Installation & Fitment

  • Suitable for Right Handle & Left Hand Opening door.
  • Door width Maximum 850mm
  • Suitable Door Weight 80kg
  • Concealed Box Size 250 x 110 mm
  • Cover Plate Size : 266 x 126 mm
  • Adjustment latching speed and adjustable door closing speed
  • Suitable for Main door, Office Door, Building Lobby etc.

Material & Fitment

  • Cast Iron Main Body & SS 304 Cover Plate
  • Anti Corrosion Black Colour & SS Matt finish on Plate

Warranty & Support

1 Year Warranty against manufacturing defect. For warranty claim, contact Brand Support: +91 9920399887

Inside the Box

1 x Floor Spring with Box & Cover Plate

1 x Installation Screws & Hardware

1 x Installation Guide
